Starting System & Charging System (Except For STI): Starter: Installation
Install in the reverse order of removal.
NOTE:

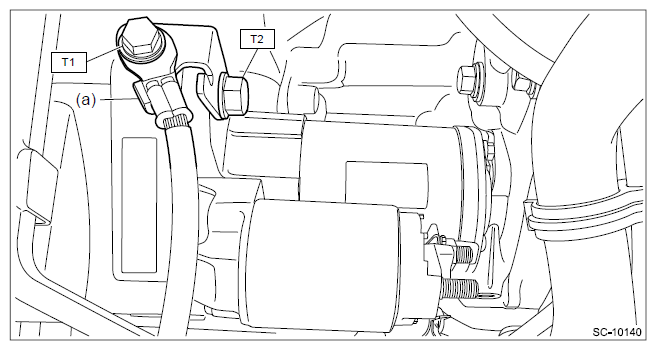

- Tighten the starter and cable stay (a) together using the upper bolt securing the starter.
- For the MT model, a bolt is used to the location (b).
Tightening Torque:
T1: 14 N.m (1.4 kgf-m, 10.3 ft-lb)
T2: 50 N.m (5.1 kgf-m, 36.9 ft-lb)
Tightening Torque:
11 N.m (1.1 kgf-m, 8.1 ft-lb)
