360° Interval Difference Method

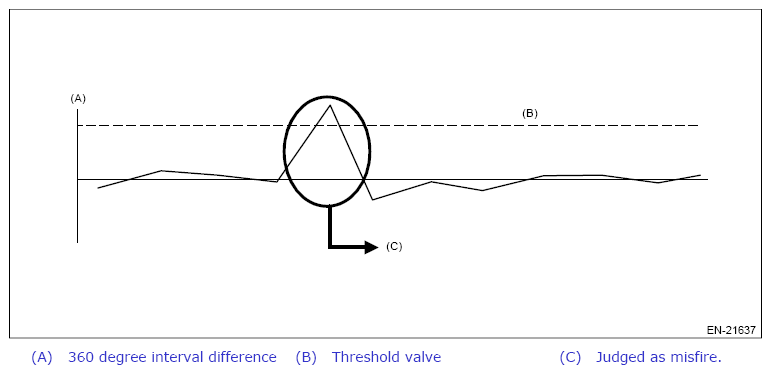

Diagnostic value 360 degree interval difference = (B - A) - (D - C)
Misfire judgment 360 degree interval difference>Judgment value → Judged as misfire
G12453877Courtesy of SUBARU OF AMERICA, INC.
