180° Interval Difference Method

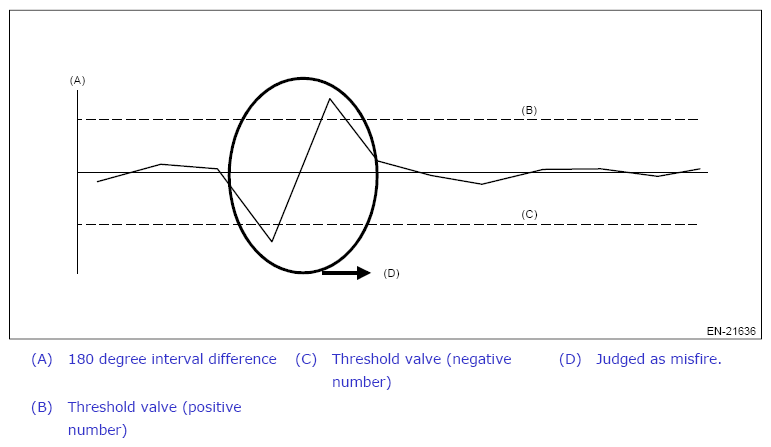

Diagnostic value 180 degree interval difference = (A - B) - (B - C)
Judge as a misfire in the following cases.
  • 180 degree interval difference = Judgment value of positive side
  • 180 degree interval difference = Judgment value of negative side

    (Diagnostic value before 180° CA)
G12453876Courtesy of SUBARU OF AMERICA, INC.
