Related Lines More Than 52 Ω And Less Than 62 Ω (Power Steering Control Module System)

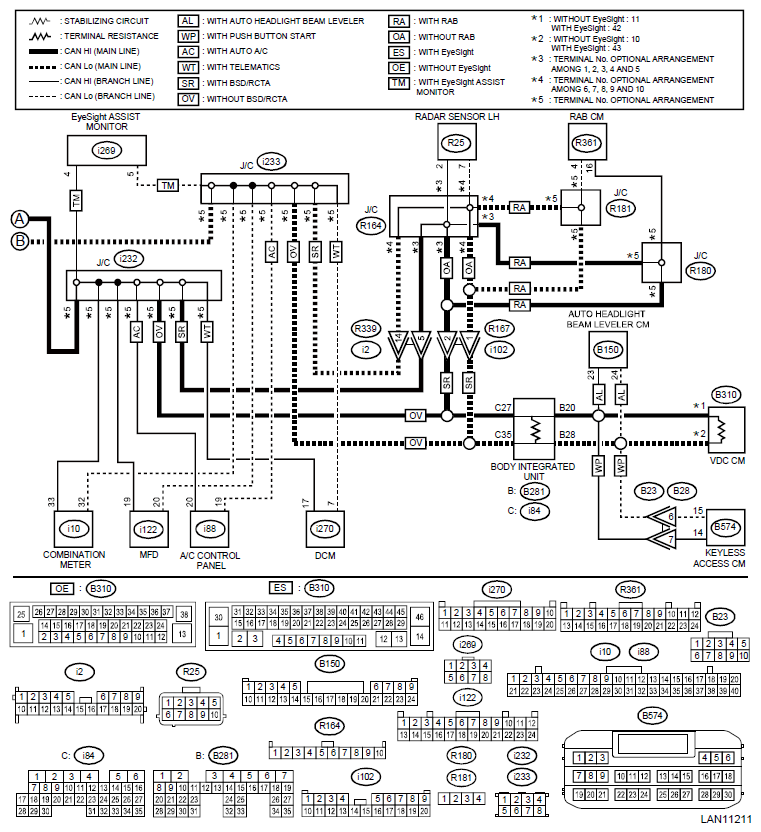

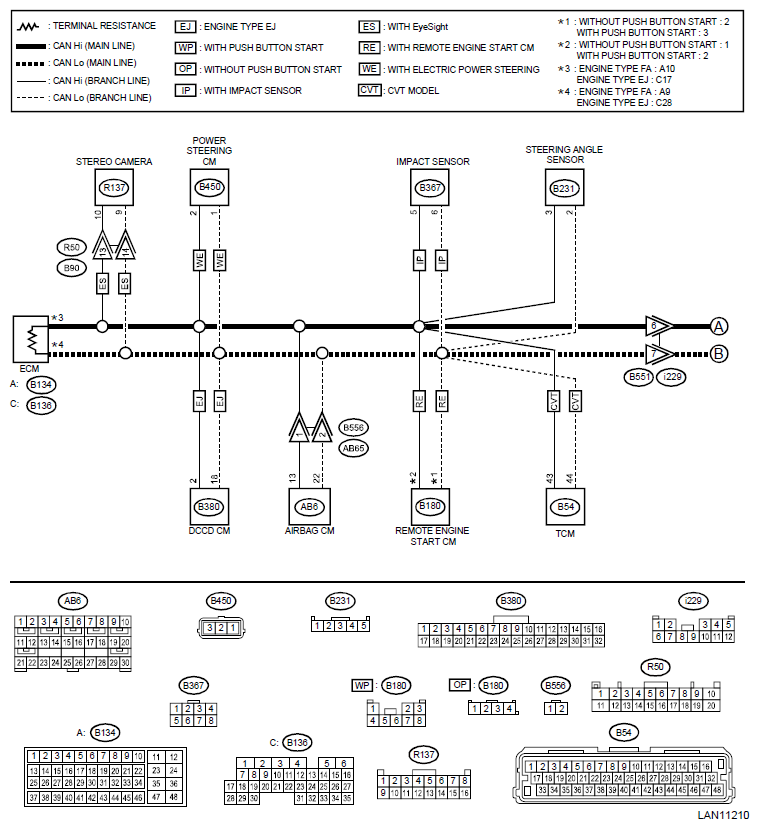

Wiring diagram:
CAN communication system Ref. to WIRING SYSTEM>CAN Communication System>WIRING DIAGRAM .
- CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS
.
- Disconnect the power steering CONTROL MODULE connector.
- Using the tester, measure the resistance between terminals.
Connector & terminal
(B450) No. 1 - (B450) No. 2:
Is the resistance 400 Ω or more?
Yes: Related lines or main wiring harness between power steering CONTROL MODULE and main wiring harness is open at two places or more.
No: Go to 2
- CHECK RELATED LINES
.
Using the tester, measure the resistance between terminals.
Connector & terminal
(B450) No. 1 - (B231) No. 2:
(B450) No. 2 - (B231) No. 3:
Is the resistance 10 Ω or more?
Yes: Repair or replace the open circuit portion of power steering CONTROL MODULE related lines.
No: Check DTC of power steering CONTROL MODULE. Ref. to POWER ASSISTED SYSTEM (POWER STEERING) (DIAGNOSTICS)>Read Diagnostic Trouble Code (DTC)>OPERATION .
