Universal Joint: Removal

  1. Set the steering wheel to the straight-ahead position.
  2. Adjust the tilt position of the steering column to the neutral position.
    CAUTION: Always place the tilt lever to the lock position after the steering column is adjusted.
  3. Set the driver's seat to the neutral position.
  4. Prevent the steering wheel from turning using the seat belt.
    G11245584Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
  6. Remove the front exhaust pipe. (H6 model only) Ref. to EXHAUST(H6DO)>Front Exhaust Pipe>REMOVAL .
  7. Remove the universal joint assembly - steering.
    1. Place alignment marks on the universal joint assembly - steering.
      NOTE: Place alignment marks on the following positions.
      • Between the column assembly - steering and the universal joint assembly - steering
      • Between the steering gearbox assembly and the universal joint assembly - steering (the guide is not installed)
    2. Remove the bolt, and remove the universal joint assembly - steering.

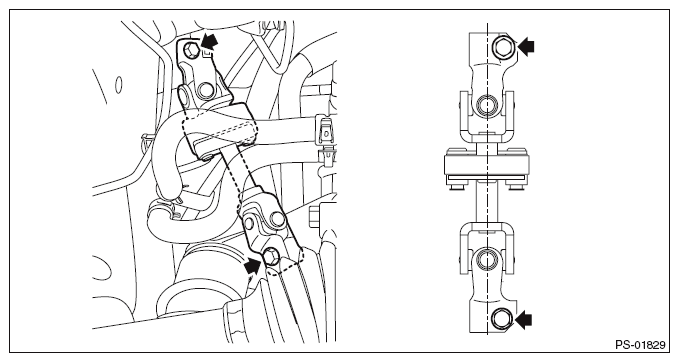

    G10272460Courtesy of SUBARU OF AMERICA, INC.
