Torque Converter Assembly: Removal

  1. Remove the transmission assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Automatic Transmission Assembly>REMOVAL .

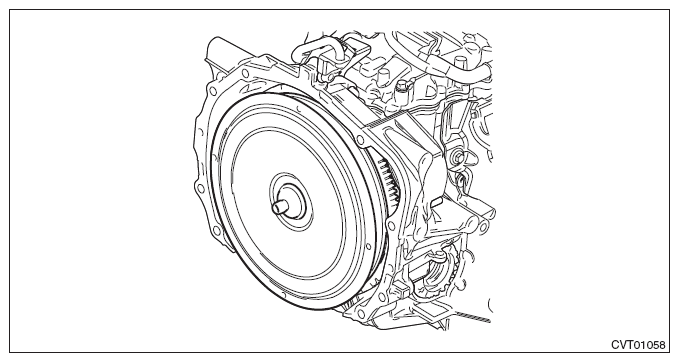

  2. Pull out the torque converter assembly horizontally.
    CAUTION: Do not scratch the inside of engaging parts.
    G10275128Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-ring from the input shaft.
