Rear Trailing Link: Removal

  1. Lift up the vehicle, and then remove the rear wheels.
  2. Remove the trailing link.

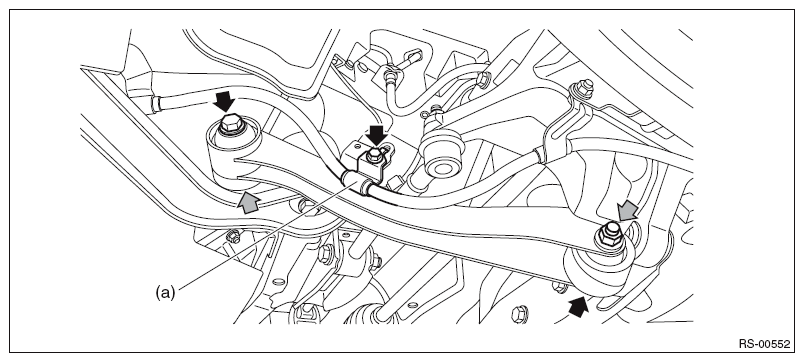

    1. Remove the bolts, and remove the bracket - parking brake cable (a) from the trailing link.
    2. Remove the bolts and nuts, and then remove the trailing link.
      G10271913Courtesy of SUBARU OF AMERICA, INC.
