Rear Lateral Link: Disassembly

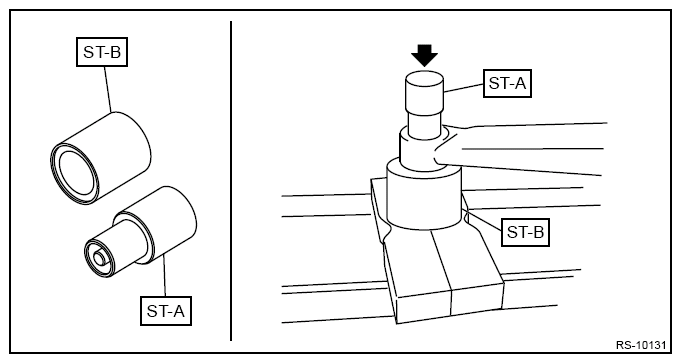

Using the ST, push out the bushing.

Preparation tool:

ST-A & ST-B: INSTALLER & REMOVER (20099AE010)

G12406045

Courtesy of SUBARU OF AMERICA, INC.
