Rear Suspension

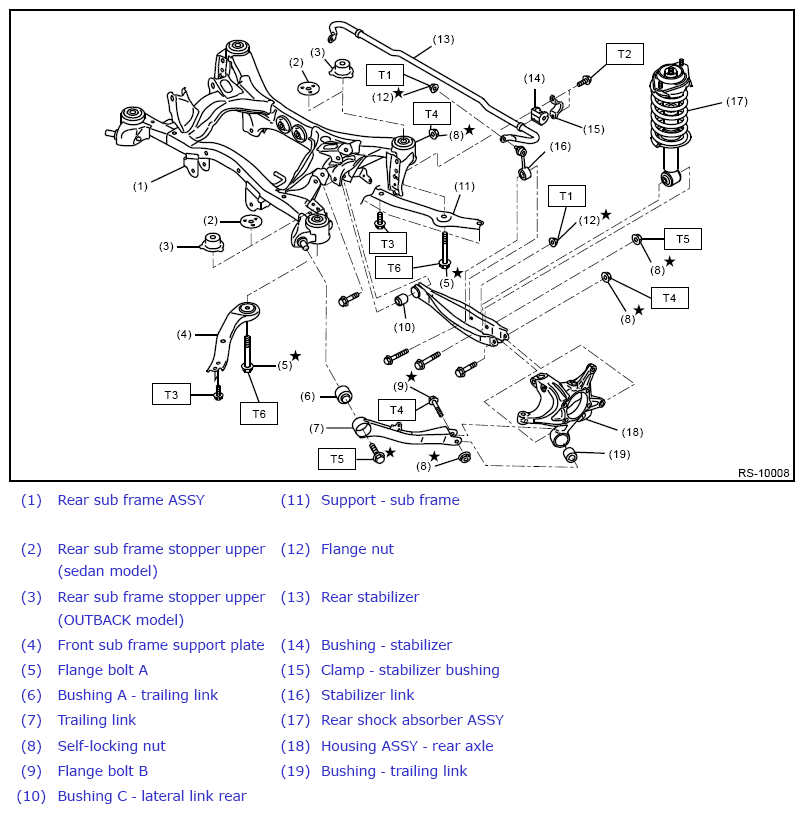

Fig 1: Rear Suspension Components (1 of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 33 (3.4, 24.3)

T2: 38 (3.9 28)

T3: 70 (7.1, 51.6)

T4: 80 (8.2, 59)

T5: 120 (12.2, 88.5)

T6: 145 (14.8, 106.9)

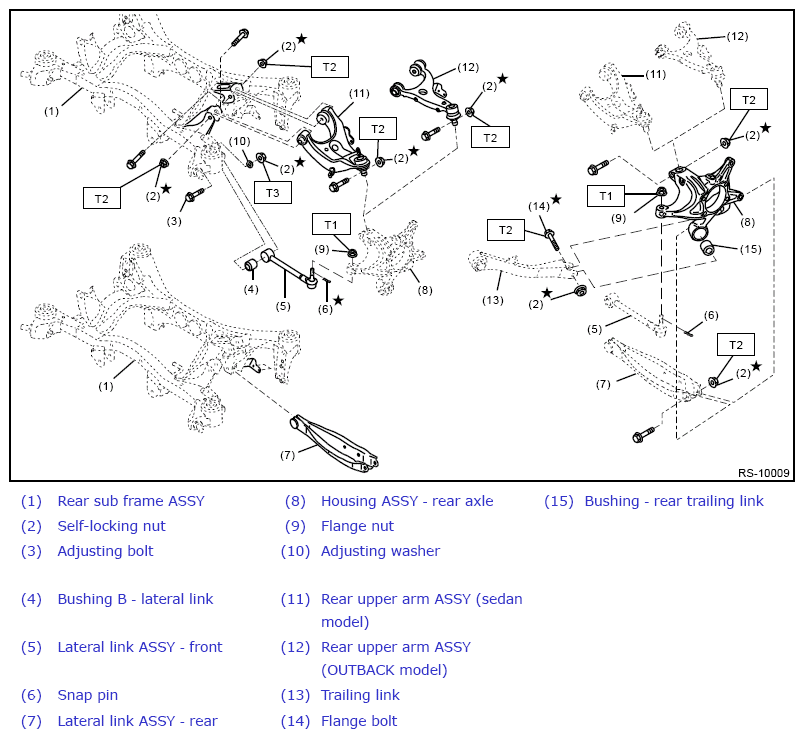

Fig 2: Rear Suspension Components (2 of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 60 (6.1, 44.3)

T2: 80 (8.2, 59)

T3: 120 (12.2, 88.5)
