Relay and Fuse: Removal

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
  3. Remove the body integrated unit. Ref. to SECURITY AND LOCKS>Body Integrated Unit>REMOVAL .

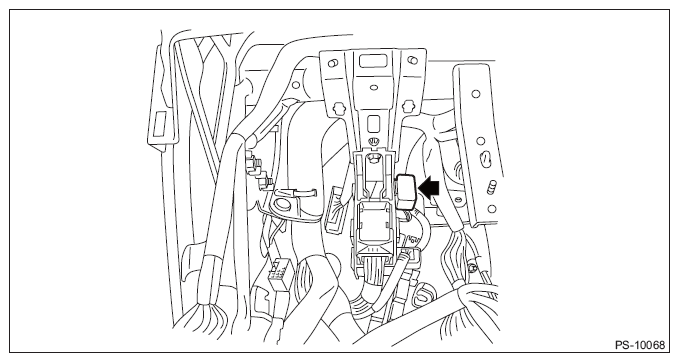

  4. Remove the steering heater relay.
G11580813Courtesy of SUBARU OF AMERICA, INC.
