Relay and Fuse: Location

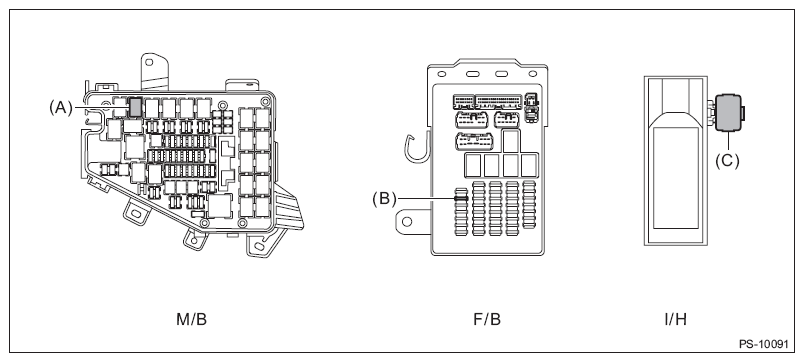

G11580812Courtesy of SUBARU OF AMERICA, INC.
Main fuse box (M/B) SBF fuse 80 A (power steering Control Module) (A)
Fuse & relay box (F/B) Fuse 7.5 A (power steering Control Module) (B)
Instrument panel harness holder (I/H) Steering heater relay (C)
