Air Cleaner Case: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the air cleaner element. Ref. to INTAKE (INDUCTION) (H6DO)>Air Cleaner Element>REMOVAL
  3. Remove the bolts securing the air cleaner case (front) to the vehicle body.
  4. Remove the air cleaner case (front).
    NOTE: The protrusion of the air cleaner case (front) is inserted in the cushion of the air cleaner case bracket.
    G10263850Courtesy of SUBARU OF AMERICA, INC.

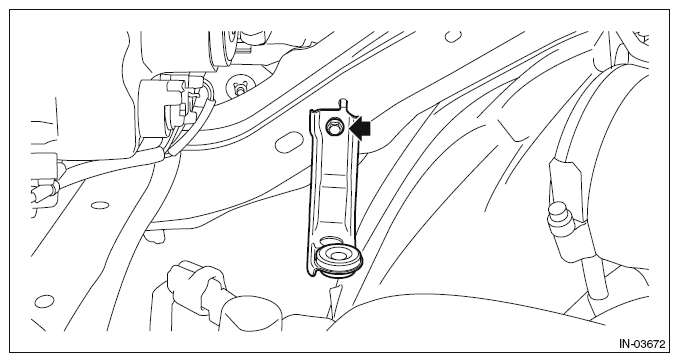

  5. Remove the air cleaner case bracket from the vehicle.
    G10262453Courtesy of SUBARU OF AMERICA, INC.
