Hill Hold Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly - front. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .

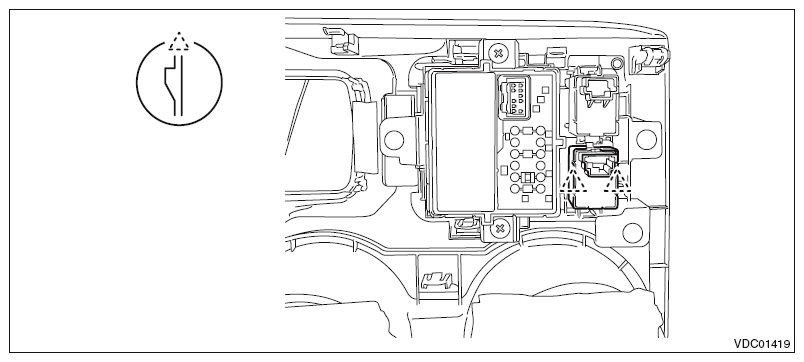

  3. Release the claws and remove the hill hold switch.
    G10272392Courtesy of SUBARU OF AMERICA, INC.
