Rear Gate Glass: Installation

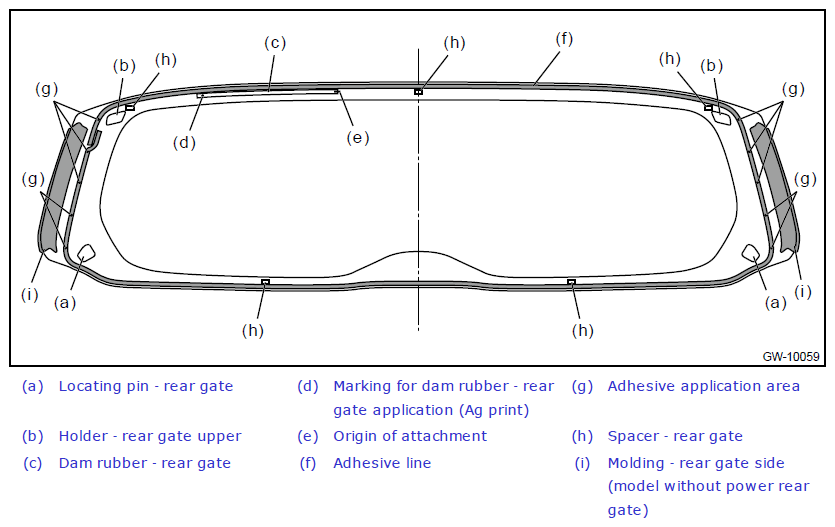

NOTE: Use the markings on the glass to apply adhesive and primer, and to install the dam rubber - rear gate and the spacer - rear gate.
G12408394Courtesy of SUBARU OF AMERICA, INC.
  1. Fabricate the cartridge nozzle tip as shown and set the sealant gun with the adhesive.
    G12408381Courtesy of SUBARU OF AMERICA, INC.
  2. Smoothen and clean the adhesive surfaces of the glass - rear gate and body using the same procedures as for the glass - front window. Ref. to GLASS/WINDOWS/MIRRORS>Windshield Glass>INSTALLATION .

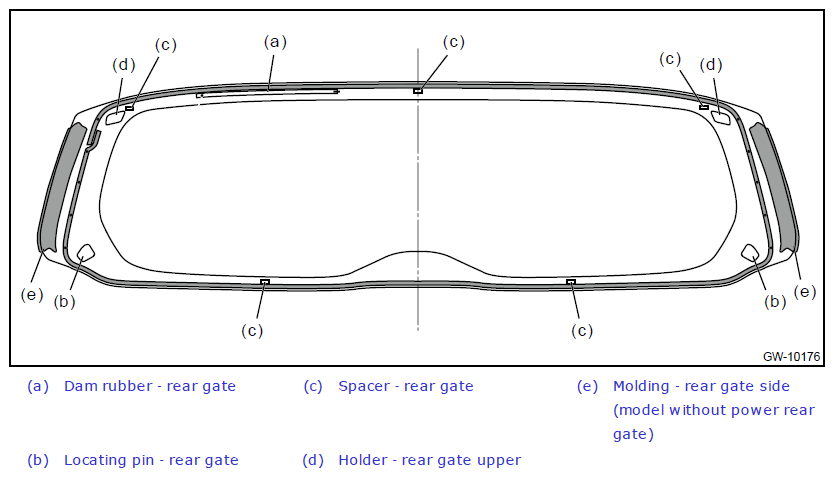

  3. Attach the dam rubber - rear gate to the glass - rear gate.
    G12408396Courtesy of SUBARU OF AMERICA, INC.

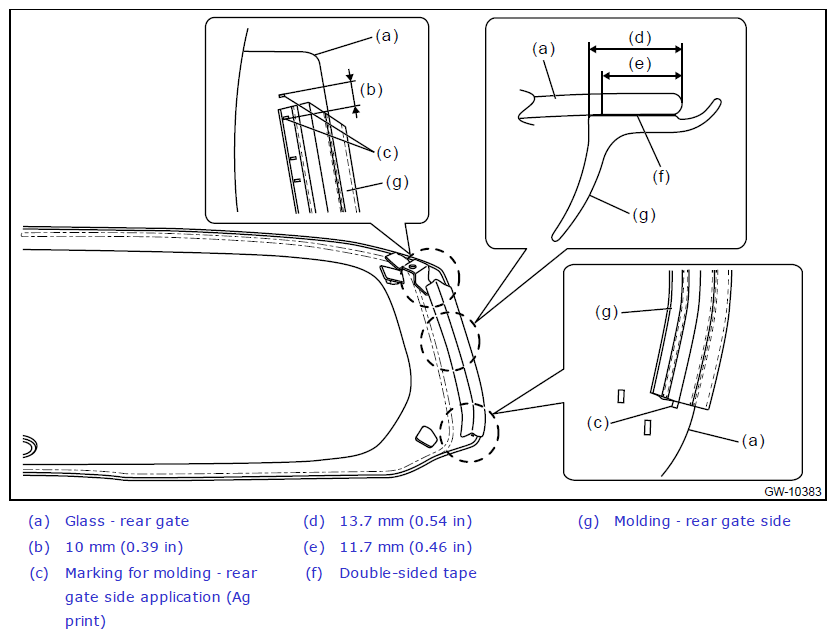

  4. Attach the molding - rear gate side to the glass - rear gate. (Model without power rear gate)
    CAUTION: Be careful to attach the molding - rear gate side so that the molding has no loose or undulating part.
    NOTE:
    • Install the molding - rear gate side so that its upper end is within (b).
    • Use the Ag print as a reference when installing the molding - rear gate side.
    G12408397Courtesy of SUBARU OF AMERICA, INC.

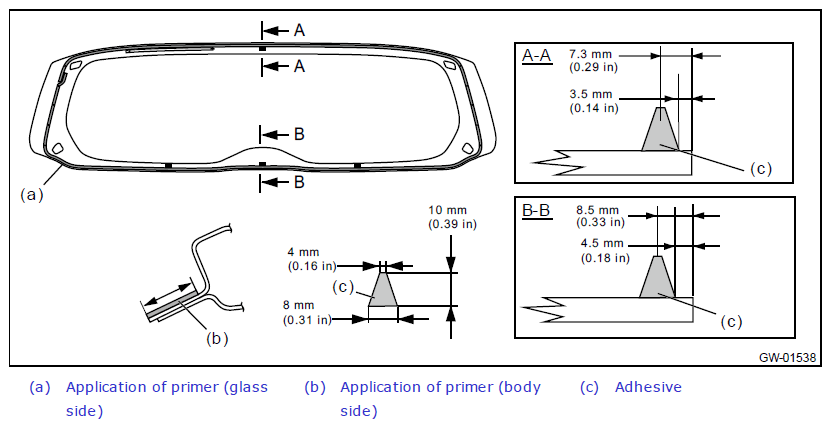

  5. Install the glass - rear gate.
    1. Apply the primer to the adhesive surface of glass - rear gate side and body side using sponge.
    2. Apply adhesive to the glass - rear gate end back surface.
      CAUTION: Do not apply primer to adhesive.
      G12408398Courtesy of SUBARU OF AMERICA, INC.
    3. Attach the holder - clip rear gate to the holder - rear gate upper of the glass - rear gate.
    4. Insert the locating pins - rear gate into the rear gate panel holes, and install the glass - rear gate.
    5. Lightly press the entire perimeter of the glass - rear gate for tight fit.
    6. Make flush the adhesive surface jutted out using spatula.
  6. After completion of all work, allow the vehicle to stand for about 24 hours.
    NOTE:
    • When opening/closing the door after the glass - rear gate was bonded, always lower the glass assembly - door first, and then open/close it carefully.
    • Move the vehicle slowly.
    • For minimum drying time and vehicle standing time before driving after bonding, follow instructions or instruction manual from the adhesive manufacturer.
  7. Connect the rear defogger connector.
  8. Install the motor assembly - rear wiper and the arm assembly - rear wiper. Ref. to WIPER AND WASHER SYSTEMS>Rear Wiper Motor>INSTALLATION .

    Tightening torque:

    Motor assembly - rear wiper and arm assembly - rear wiper: Ref. to WIPER AND WASHER SYSTEMS>General Description>COMPONENT>REAR WIPER .

  9. Install the roof spoiler. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Garnish>INSTALLATION .

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

  10. Install the touch sensor LWR. Ref. to POWER REAR GATE SYSTEM>Power Rear Gate Touch Sensor>INSTALLATION>TOUCH SENSOR LWR .
  11. Install the trim panel - rear gate. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Trim>INSTALLATION .
  12. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  13. After curing of adhesive, pour the water on external surface of vehicle to check that there are no water leaks.
    NOTE: When a vehicle is returned to the user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
