General Description
>>
Components With Torque Specifications
Components With Torque Specifications

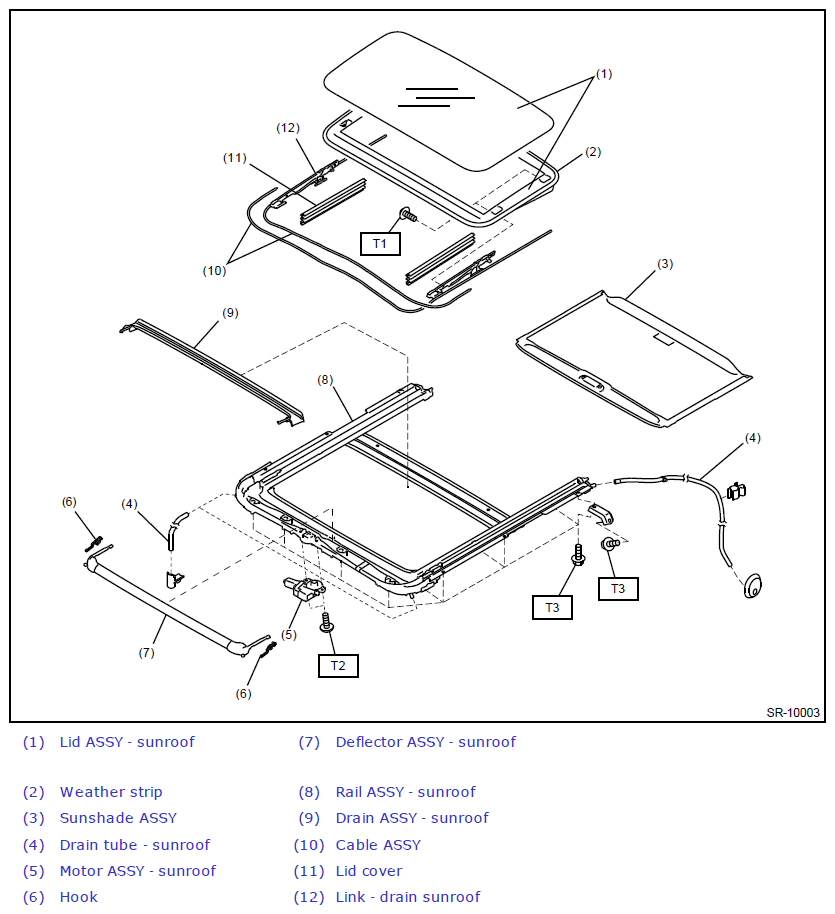

Fig 1: Locating Sunroof Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 4.5 (0.5, 3.3)
T2: 5.4 (0.6, 4)
T3: 6 (0.6, 4.4)
Courtesy of SUBARU OF AMERICA, INC.
