Entertainment System: Audio: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the center grille assembly. Ref. to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>Air Vent Grille>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the heater control assembly. Ref. to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>Control Panel>REMOVAL .
  4. Remove the audio assembly.

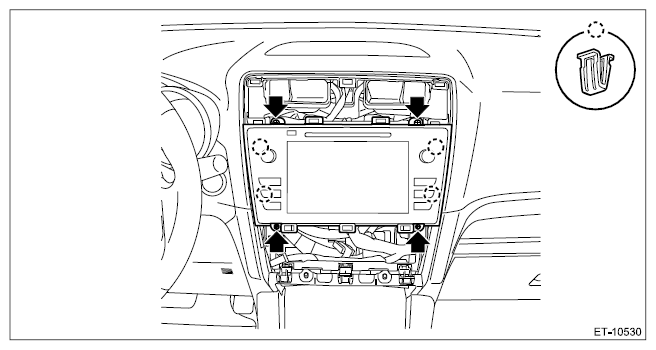

    1. Remove the screws and release the clip.
    2. Disconnect the connector and remove the audio assembly.
      G12408273Courtesy of SUBARU OF AMERICA, INC.
    NOTE: The model with telematics is equipped with the data communication module under the audio assembly.
