Inhibitor Switch: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. While pressing the shift lock release button, shift the select lever to the "N" range.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. Ref. to EXHAUST(H4DO)>Center Exhaust Pipe>REMOVAL .

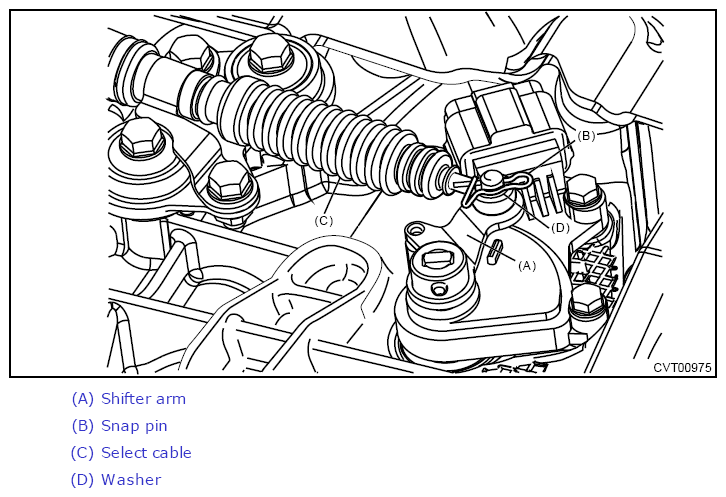

  5. Remove the snap pin and washer.
    CAUTION: Do not apply extra overload while holding the part (a).
    G12392796Courtesy of SUBARU OF AMERICA, INC.
    G12407232Courtesy of SUBARU OF AMERICA, INC.

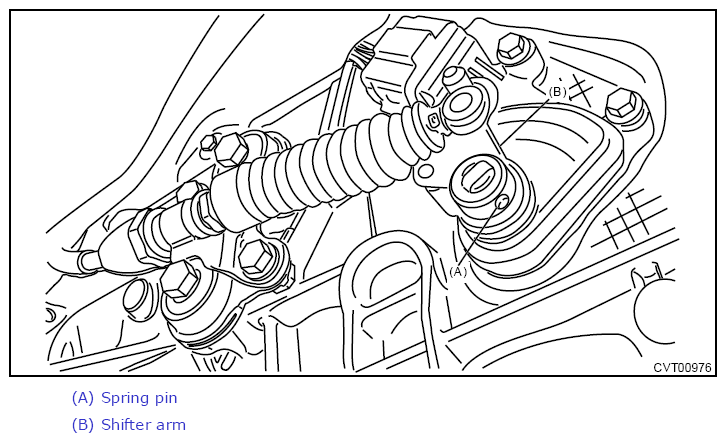

  6. Remove the spring pin and shifter arm.
    G12407233Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the inhibitor harness connector.
  8. Remove the inhibitor switch.
    G10218584Courtesy of SUBARU OF AMERICA, INC.
