Inhibitor Switch: Adjustment

Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.

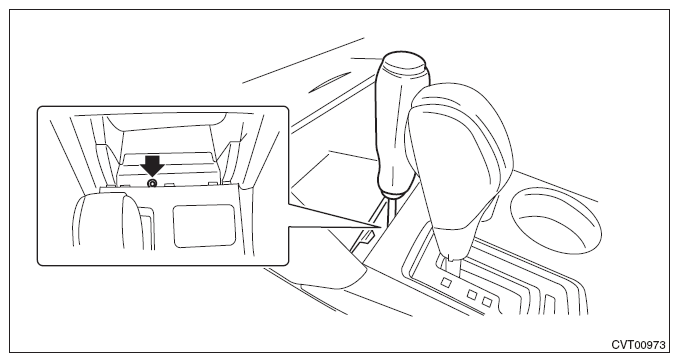

Release the shift lock using a screwdriver to shift the select lever to the "N" range.

Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the center exhaust pipe. Ref. to EXHAUST(H4DO)>Center Exhaust Pipe>REMOVAL .
Loosen the two bolts holding the inhibitor switch.
Insert the ST vertically into the holes of the shifter arm and switch body.
ST 499267300 STOPPER PIN

Courtesy of SUBARU OF AMERICA, INC.
Tighten the two bolts holding the inhibitor switch.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Repeat the inspection of the inhibitor switch. If the inhibitor switch is determined to be "faulty", replace it.
