Oil Pan And Strainer

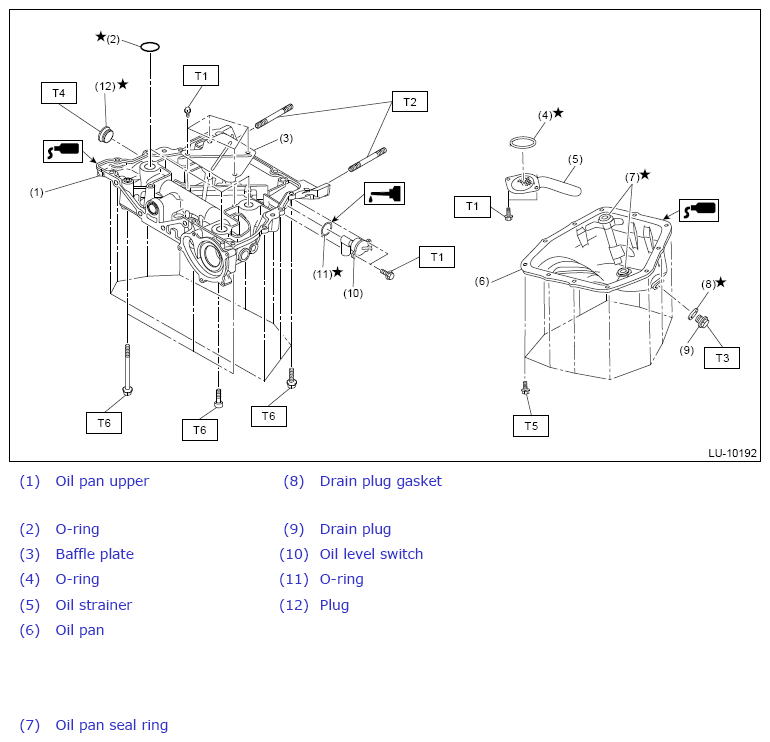

Fig 1: Locating Oil Pan And Strainer Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 10 (1.0, 7.4)

T3: 41.7 (4.3, 30.8)

T4: 90 (9.2, 66.4)

T5:  Ref. to LUBRICATION (H4DO>Oil Pan>INSTALLATION>OIL PAN . Ref. to LUBRICATION (H4DO)>Oil Pan>INSTALLATION>OIL PAN UPPER .
