Air Cleaner Element: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H6DO)>Air Intake Duct>REMOVAL
  3. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B) from the air cleaner case (rear).
    G10263843Courtesy of SUBARU OF AMERICA, INC.
  4. Loosen the clamp (A) securing the air intake boot to the air cleaner case (rear), and then remove the clip (B) from the air cleaner case (front).
    G10263844Courtesy of SUBARU OF AMERICA, INC.

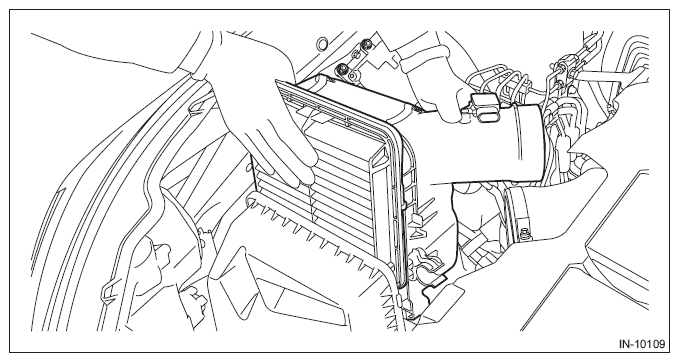

  5. Remove the air cleaner case (rear) and air cleaner element.
    G11585929Courtesy of SUBARU OF AMERICA, INC.
