Front Exhaust Pipe: Disassembly

  1. Remove the front oxygen (A/F) sensor and rear oxygen sensor from front exhaust pipe. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Front Oxygen (A/F) Sensor>REMOVAL . Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Rear Oxygen Sensor>REMOVAL

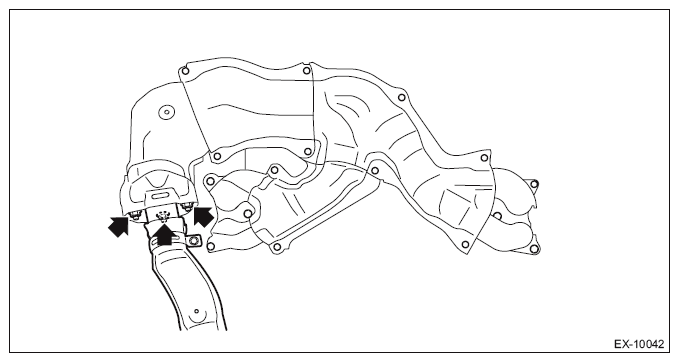

  2. Remove the center exhaust pipe from the front exhaust pipe.
    G11566728Courtesy of SUBARU OF AMERICA, INC.

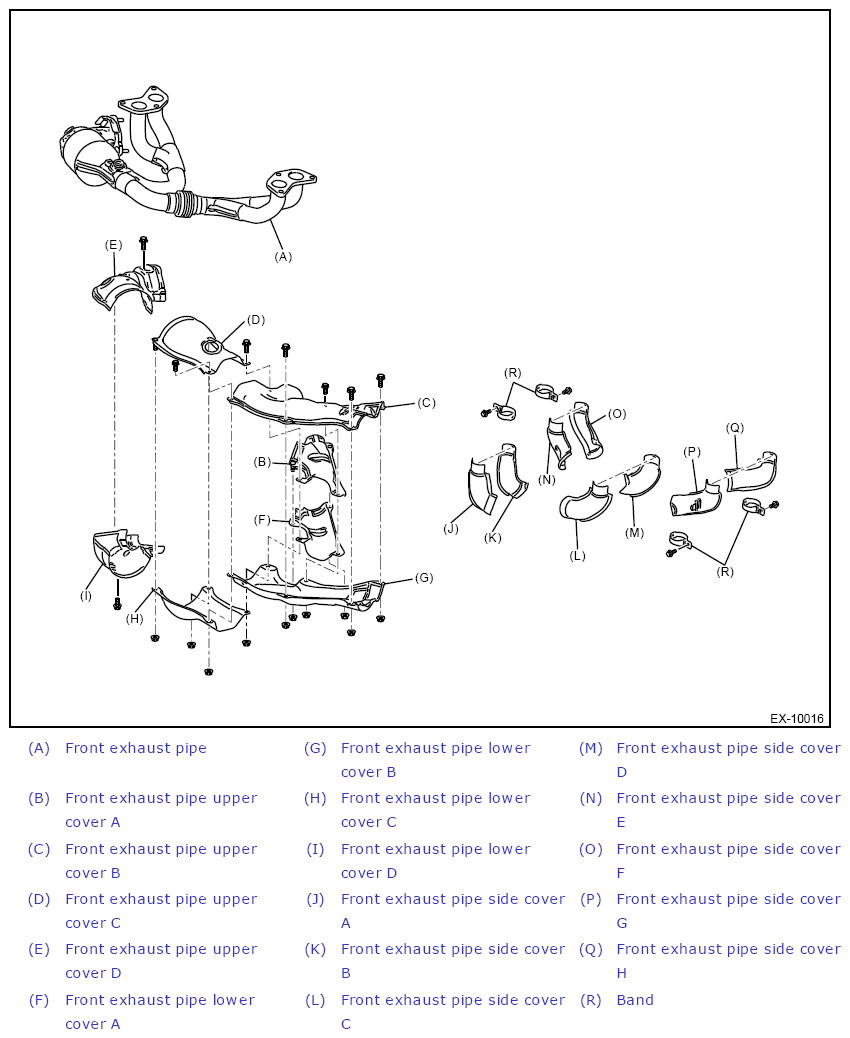

  3. Remove each cover from the front exhaust pipe.
    G12406553Courtesy of SUBARU OF AMERICA, INC.
