Rearview Mirror

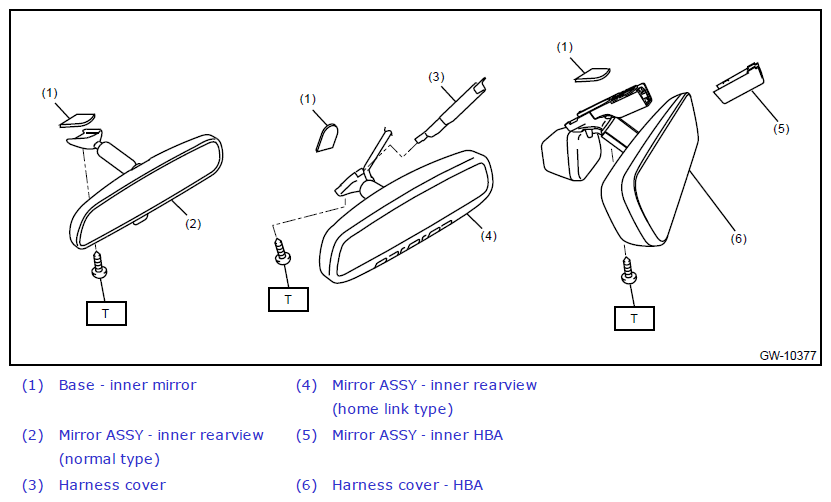

Fig 1: Rearview Mirror Components
G12408336Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 2 (0.2, 1.5)

NOTE: Base - inner mirror cannot be removed from the glass - front window.
