Check List For Interview: Check

Inspect the following items regarding the vehicle's state.

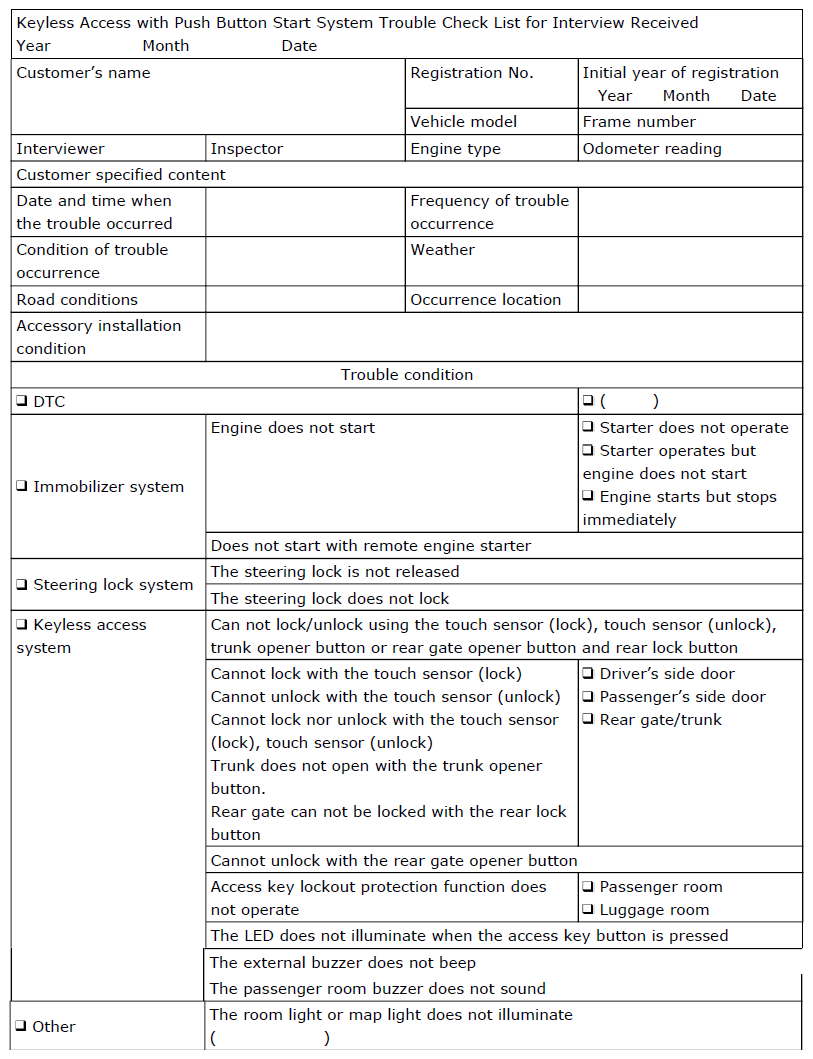

G12410363Courtesy of SUBARU OF AMERICA, INC.
NOTE:
  • Perform the diagnostics according to the basic diagnostic procedure. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START SYSTEM (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE .
  • If the room light or map light does not illuminate and the keyless access does not function at the same time, the back-up fuse may be loose or blown.
