Transmission Case: Disassembly

Remove the oil stopper plate.

Fig 1: Locating Oil Stopper Plate Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove all plugs from the transmission case.

Fig 2: Locating Plugs From Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal using a screwdriver wrapped with cloth etc.

Fig 3: Removing Oil Seal Using Screwdriver Wrapped With Cloth
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing of the secondary pulley using the ST1 and ST2.

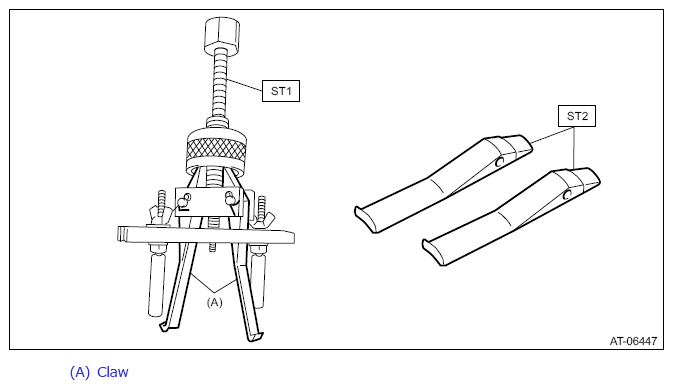

1. Remove the claw of ST1, and attach the claw of ST2.
  Preparation tool:

  ST1: PULLER ASSY (398527700)

  ST2: CLAW (18760AA000)

  Fig 4: Removing Ball Bearing Of Secondary Pulley Using ST1 And ST2
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the ball bearing of the secondary pulley using the ST1 and ST2.
  Preparation tool:

  ST1: PULLER ASSY (398527700)

  ST2: CLAW (18760AA000)

  Fig 5: Removing Ball Bearing Of Secondary Pulley Using ST1 And ST2
  Courtesy of SUBARU OF AMERICA, INC.
Remove the oil guide.

Fig 6: Removing Oil Guide
Courtesy of SUBARU OF AMERICA, INC.
Remove the roller bearing of the reduction driven gear.

Fig 7: Removing Roller Bearing Of Reduction Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust bearing.

Fig 8: Removing Thrust Bearing
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF filter cover and gasket.

Fig 9: Identifying CVTF Filter Cover And Gasket
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF filter.

Fig 10: Identifying CVTF Filter

Courtesy of SUBARU OF AMERICA, INC.
