Secondary Speed Sensor: Removal

CAUTION:
  • Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.
  • When secondary speed sensor is removed, CVTF leaks. After installing the secondary speed sensor, adjust the CVTF level.
  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>SAFETY .
  2. Lift up the vehicle.
  3. Remove the harness connector from secondary speed sensor.
  4. Remove the secondary speed sensor and spacer.

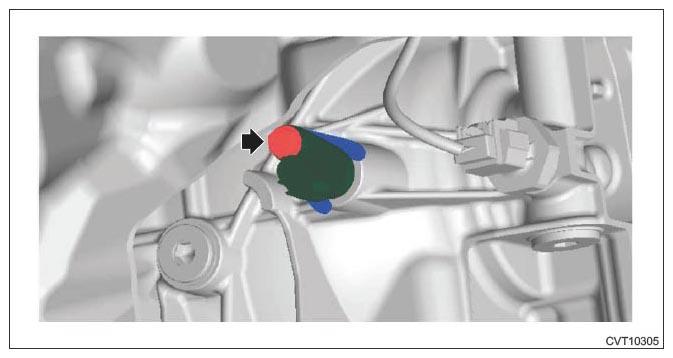

Fig 1: Locating Secondary Speed Sensor Bolts
G11255625Courtesy of SUBARU OF AMERICA, INC.
