Preparation for Overhaul: Procedure

Clean the transmission exterior.
Remove the torque converter assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Torque Converter Assembly .
Attach the ST to the transmission.
Preparation tool:

ST: STAND ASSY (18632AA000)

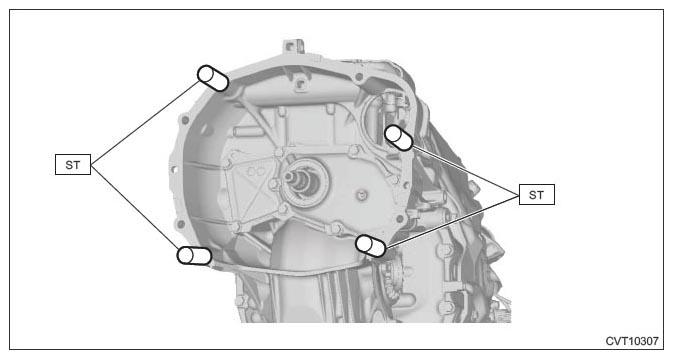

Fig 1: Attaching ST To Transmission
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission case cover on the transmission upper side.
NOTE: For installation, first install the transmission case cover (large), then insert the transmission case cover (small) between the transmission case cover (large) and the transmission to install.

Tightening torque:

Cover (small): 7 N.m (0.7 kgf-m, 3.7 ft-lb)

Cover (large): 8 N.m (0.8 kgf-m, 5.9 ft-lb)

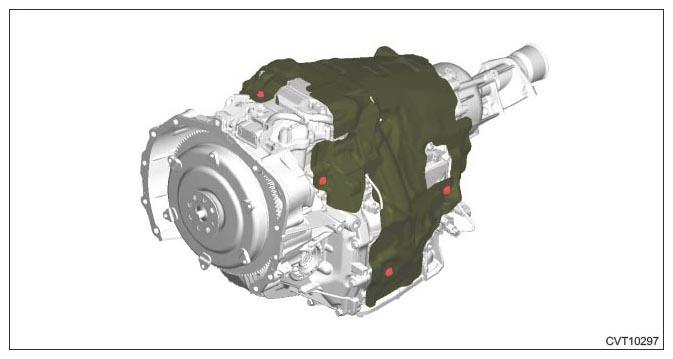

Fig 2: Identifying Transmission Case Cover
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Installing Transmission Case Cover
Courtesy of SUBARU OF AMERICA, INC.
Place the transmission assembly on end.
When completely overhauling the transmission, refill approx. 10 L (2.6 US qt, 8.8 Imp qt) of CVTF through the transmission right side plug, and install the plug. Finally, install the transmission case cover.
CAUTION: Always use specified CVTF. Using other fluid will cause malfunction. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>General Description>SPECIFICATION>HYDRAULIC CONTROL AND LUBRICATION .

NOTE: Use a new gasket.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Fig 4: Locating Plug
Courtesy of SUBARU OF AMERICA, INC.
