Drive Plate: Removal

  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Automatic Transmission Assembly>REMOVAL .
  2. Set the ST.

    Preparation tool:

    ST: CRANKSHAFT STOPPER (498497300)

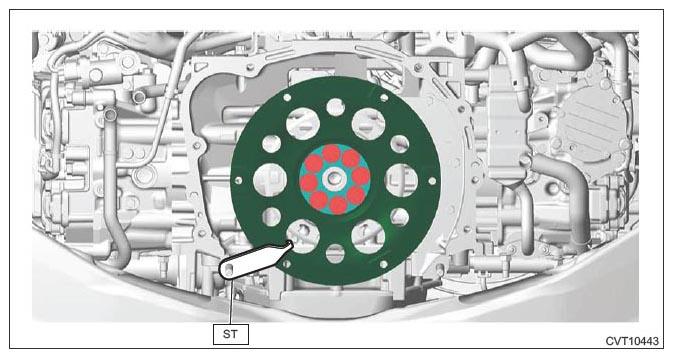

    Fig 1: Setting Crankshaft Stopper On Drive Plate
    G11255737Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the drive plate and reinforcement drive plate.
