MT Gear Shift Lever: Disassembly

NOTE: Disassembly is available only for 5MT model.

Remove the lock wires.

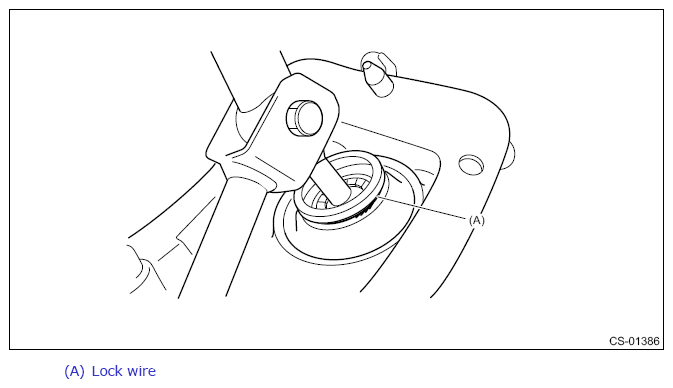

Fig 1: Removing Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from gear shift lever.

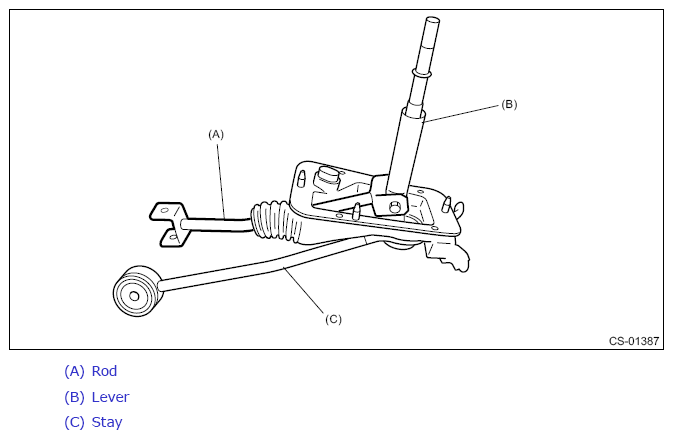

Fig 2: Locating Rod, Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Separate the rod and inner boot.
Remove the snap ring from the stay.

Fig 3: Removing Snap Ring From Stay
Courtesy of SUBARU OF AMERICA, INC.
Separate the gear shift lever and the stay.

Fig 4: Separating Gear Shift Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot and bushing from the gear shift lever.

Fig 5: Locating O-Ring And Bushing
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring pin, and then remove the bushing and snap ring.

Fig 6: Locating Spring Pin, Bushing And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the boss from the joint.

Fig 7: Removing Boss From Joint
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing and spacer from the boss.

Fig 8: Locating Bushing And Spacer
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing and cushion rubber from the stay.

Fig 9: Locating Bushing, Stay And Cushion Rubber

Courtesy of SUBARU OF AMERICA, INC.
