MT Gear Select Cable: Removal

CAUTION: Always use new MT gear select cable if the cable is removed from selector lever COMPL of transmission side.

Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the clip from the air intake boot, and loosen the clamp.

Fig 1: Locating Air Intake Boot Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot, and place it aside so that it does not interfere with the work.
CAUTION: Be careful not to pull out the PCV hose.

Fig 2: Removing Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Remove the coupling harness.

Fig 3: Locating Coupling Harness
Courtesy of SUBARU OF AMERICA, INC.
Remove the clips and remove the air breather hose.

Fig 4: Locating Clips And Air Breather Hose
Courtesy of SUBARU OF AMERICA, INC.

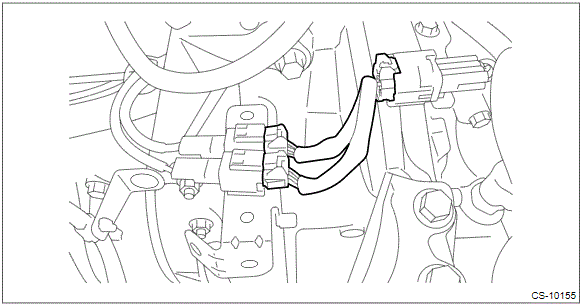

Disconnect the transmission radio ground cord terminal.

Fig 5: Locating Transmission Radio Ground Cord
Courtesy of SUBARU OF AMERICA, INC.
Remove the pitching stopper. Ref. to REMOVAL .
Lift up the vehicle.
Remove the front exhaust pipe. Ref. to FRONT EXHAUST PIPE .
Remove the center exhaust cover.

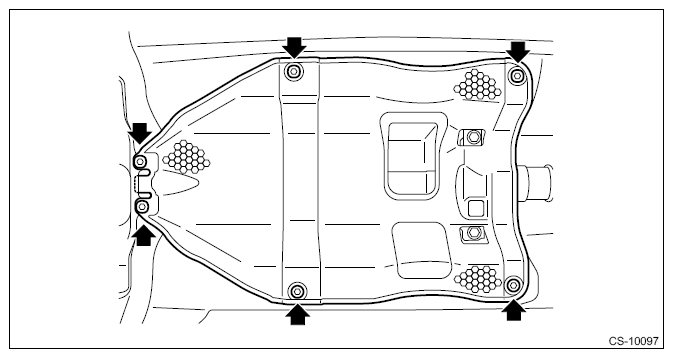

Fig 6: Locating Center Exhaust Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the propeller shaft.
Remove the cable clamp.

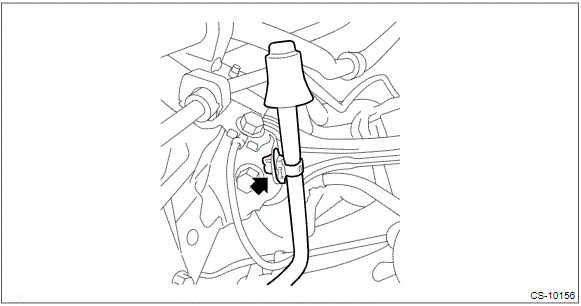

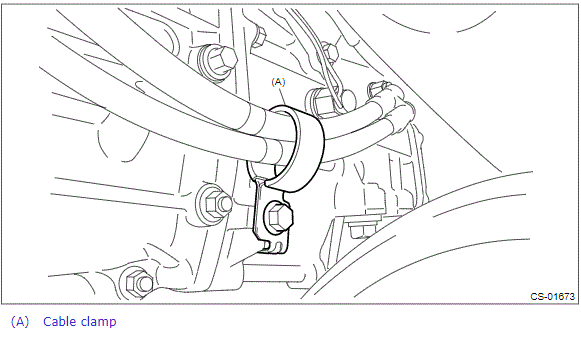

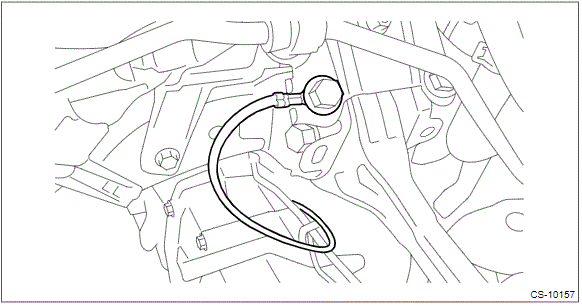

Fig 7: Locating Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Place the transmission jack under the transmission.
Remove the mounting bolt of front crossmember and rear crossmember, and lower the transmission approx. 100 mm (4 in).

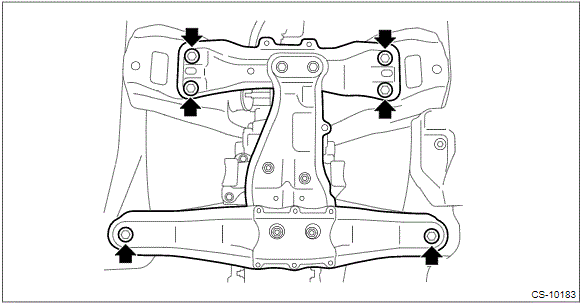

Fig 8: Removing Front And Rear Crossmember Bolts
Courtesy of SUBARU OF AMERICA, INC.
Insert a spanner between the selector lever COMPL and the MT gear select cable, and remove the MT gear select cable by raising the handle.
CAUTION: Do not apply excessive load while holding the part (a).

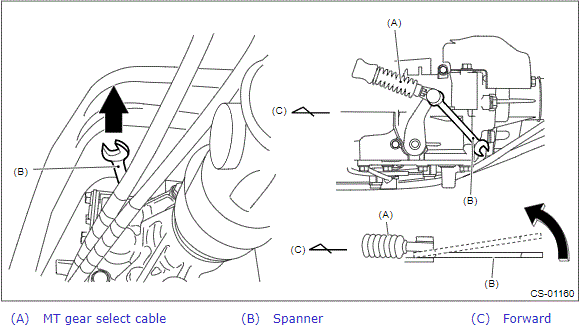

Fig 9: Locating MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- Use a spanner with 11 to 13 in size.
- The thickness of the spanner must not exceed 6 mm (0.2in).
Fig 10: Removing MT Gear Select Cable By Raising The Handle
Courtesy of SUBARU OF AMERICA, INC.
Remove the MT gear select cable and select bracket as a single unit.

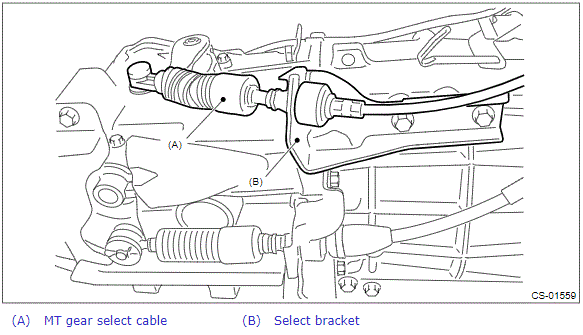

Fig 11: Removing Entire MT Gear Select Cable Unit
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable cover plate.

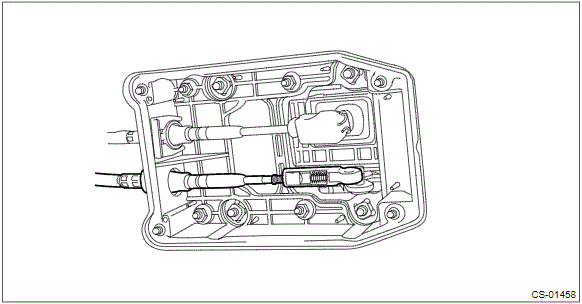

Fig 12: Removing Cable Cover Plate
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the MT gear select cable.
CAUTION:
- Be careful not to deform the cable inner.
- Do not apply excessive load while holding the part (a).
Fig 13: Locating Inner Cable
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Push the MT gear select cable in the direction of arrow, and remove it.

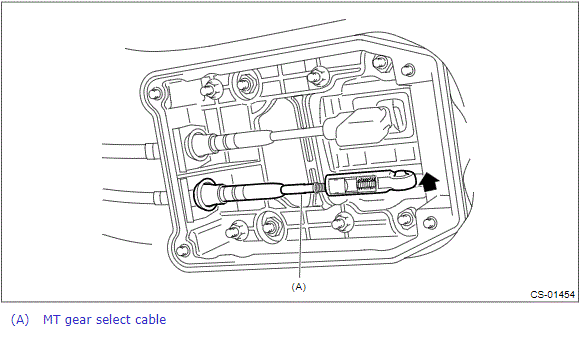

Fig 14: Locating MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp.

Fig 15: Removing Clamp
Courtesy of SUBARU OF AMERICA, INC.
Pull out the MT gear select cable.
CAUTION: Do not bend the MT gear select cable sharply.

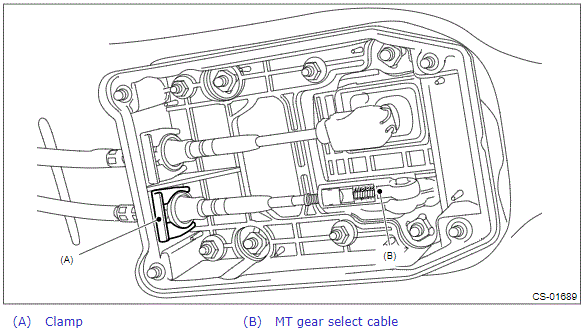

Fig 16: Locating MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
