Stabilizer Link
CAUTION:
- Always tighten the stabilizer bushing in the state where the vehicle is at curb weight and the wheels are in full contact with the ground.

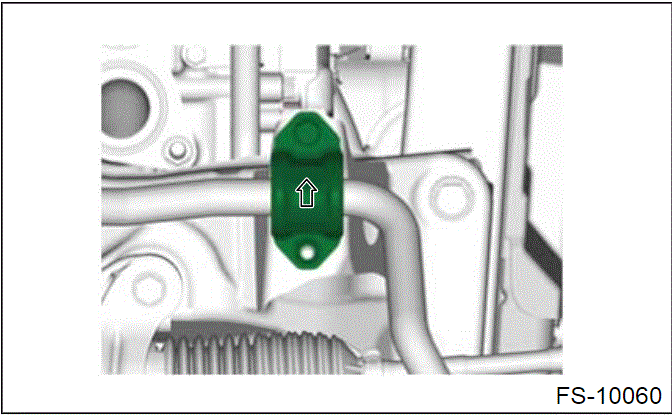

- Install the clamp - stabilizer bushing with the arrow mark facing the front of the vehicle.
- Before installation, inspect the following items and replace any faulty part with a new one.
Check the stabilizer link for damage.
- Install the stabilizer link.
Tightening torque:
60 N.m (6.1 kgf-m, 44.3 ft-lb)
- Install the under cover - front.
Tightening torque:
18N.m (1.8 kgf-m, 13.3 ft-lb)
- Lower the vehicle, and install the front wheels.
Tightening torque:
120 N.m (12.2 kgf-m, 88.5 ft-lb)
