Front Strut: Removal

Lift up the vehicle, and then remove the front wheels.
Remove the left and right stabilizer links (upper part).

Fig 1: Locating Upper Left And Right Stabilizer Links
Courtesy of SUBARU OF AMERICA, INC.
Remove the brake hose bracket.

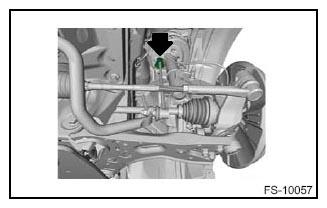

Fig 2: Locating Brake Hose Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the ABS wheel speed sensor.

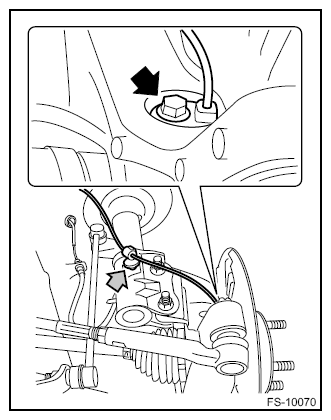

Fig 3: Locating ABS Wheel Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the strut assembly.

Place an alignment mark (a) on the adjusting bolt and the strut.
Remove the adjusting bolts and flange bolts for the strut assembly.
CAUTION: While holding the adjusting bolt side, tighten the nut side.

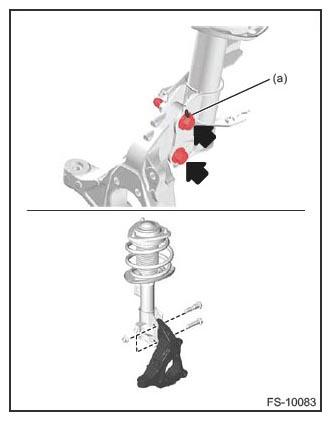

Fig 4: Locating Strut Assembly Adjusting Bolt And Strut Alignment Mark
Courtesy of SUBARU OF AMERICA, INC.
Remove the three nuts securing strut mount to body.

Fig 5: Locating Strut Mount Nuts

Courtesy of SUBARU OF AMERICA, INC.
