Transfer Case

  1. Install the shift link assembly to the transfer case. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Shift Link Assembly>INSTALLATION .

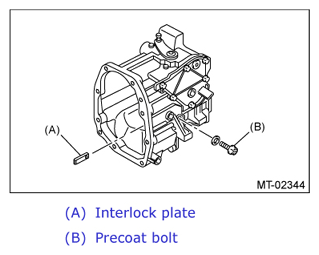

  2. Install the interlock plate.
    NOTE:
    • Use a new bolt and gasket.
    • Clean the bolt threads before installing the interlock plate.

    Tightening torque:

    20 N.m (2.0 kgf-m, 14.8 ft-lb)

    G12516229Courtesy of SUBARU OF AMERICA, INC.
