Shift Link Assembly: Removal

  1. Remove the manual transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Manual Transmission Assembly>REMOVAL .
  2. Remove the back-up light switch and the neutral position switch. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Switches and Harness>REMOVAL .
  3. Remove the transfer case together with the extension case assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Transfer Case and Extension Case Assembly>REMOVAL .
  4. Remove the extension case assembly.
  5. Remove the center differential and transfer driven gear as a unit. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Transfer Driven Gear>REMOVAL .

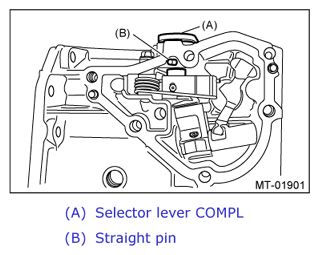

  6. Pull out the straight pin.
    G12516247Courtesy of SUBARU OF AMERICA, INC.

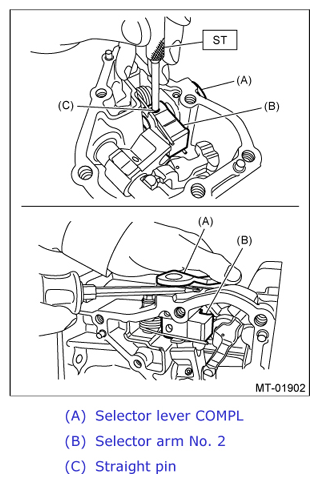

  7. Use the ST to remove the straight pin, and remove the selector lever COMPL.

    ST 398791700 REMOVER

    G12516248Courtesy of SUBARU OF AMERICA, INC.

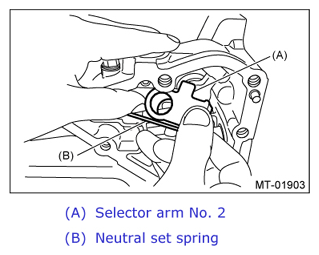

  8. Pull out the selector arm No. 2.
    G12516249Courtesy of SUBARU OF AMERICA, INC.

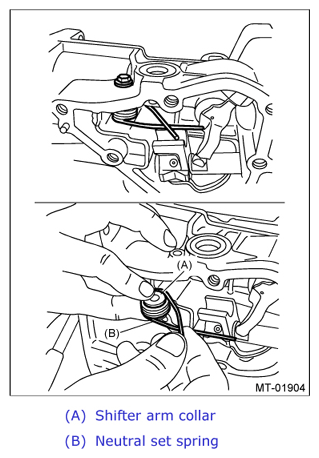

  9. Remove the bolts and remove the shifter arm collar and neutral set spring.
    G12516250Courtesy of SUBARU OF AMERICA, INC.

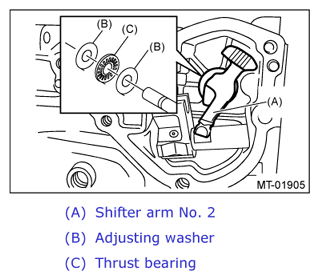

  10. Remove the shifter arm No. 2, adjusting washers and thrust bearing.
    G12516251Courtesy of SUBARU OF AMERICA, INC.

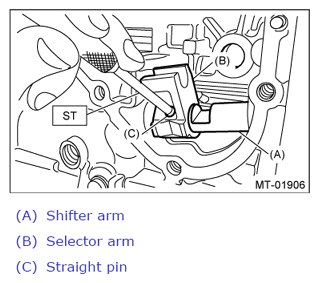

  11. Use the ST to remove the straight pin, and remove the shifter arm and selector arm.

    ST 398791700 REMOVER

    G12516252Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the oil seal using a screwdriver wrapped with tape, etc.
    NOTE: The illustration shows the oil seal of selector lever COMPL. Perform the same procedures for removing the shifter arm No. 2.
    G12516253Courtesy of SUBARU OF AMERICA, INC.

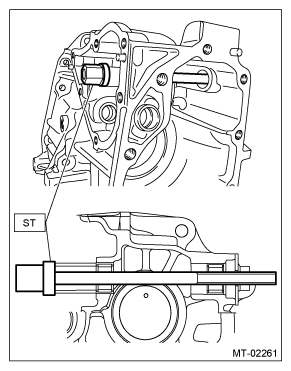

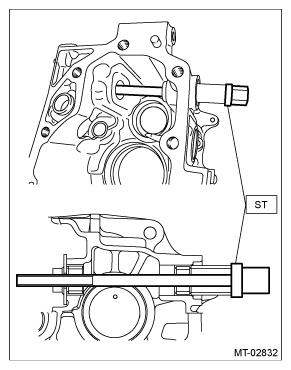

  13. Remove the needle bearing by using a tube with the diameter of 20 mm (0.79 in) or 21 mm (0.83 in) and the ST.

    ST 18763AA000 COMPRESSOR SHAFT

    G12516254Courtesy of SUBARU OF AMERICA, INC.
    G12516255Courtesy of SUBARU OF AMERICA, INC.

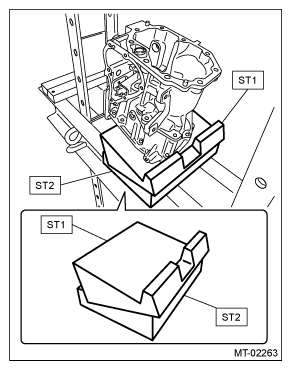

  14. Set ST1, ST2 and transfer case to a press.
    NOTE:
    • Set the ST2 under ST1.
    • Set the transfer case so that the hole for shifter arm is positioned vertically.

    ST1 498267300 CYLINDER HEAD TABLE

    ST2 498267200 CYLINDER HEAD TABLE

    G12516256Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the roller bearing by using a round bar with the diameter of 22 mm (0.87 in) or 23 mm (0.91 in).
    G12516257Courtesy of SUBARU OF AMERICA, INC.

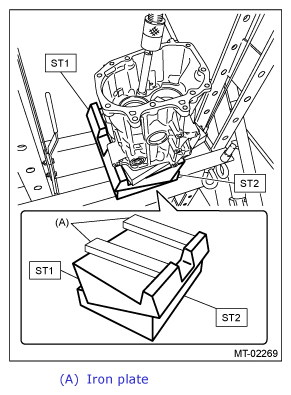

  16. Flip over the transfer case, and set an iron plate between transfer case and ST.
    NOTE:
    • Insert the iron plate which is thicker than the exposed length of the transfer case knock pin between the ST and transfer case.
    • Set the iron plate so that the transfer case knock pin does not ride on the iron plate.
  17. Remove the roller bearing by using a tube with the diameter of 22 mm (0.87 in) or 23 mm (0.91 in).
    G12516258Courtesy of SUBARU OF AMERICA, INC.

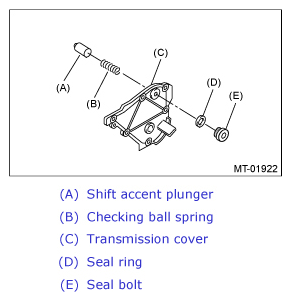

  18. Remove the shift accent plunger and the check ball spring.
    G12516259Courtesy of SUBARU OF AMERICA, INC.
