Transmission Case

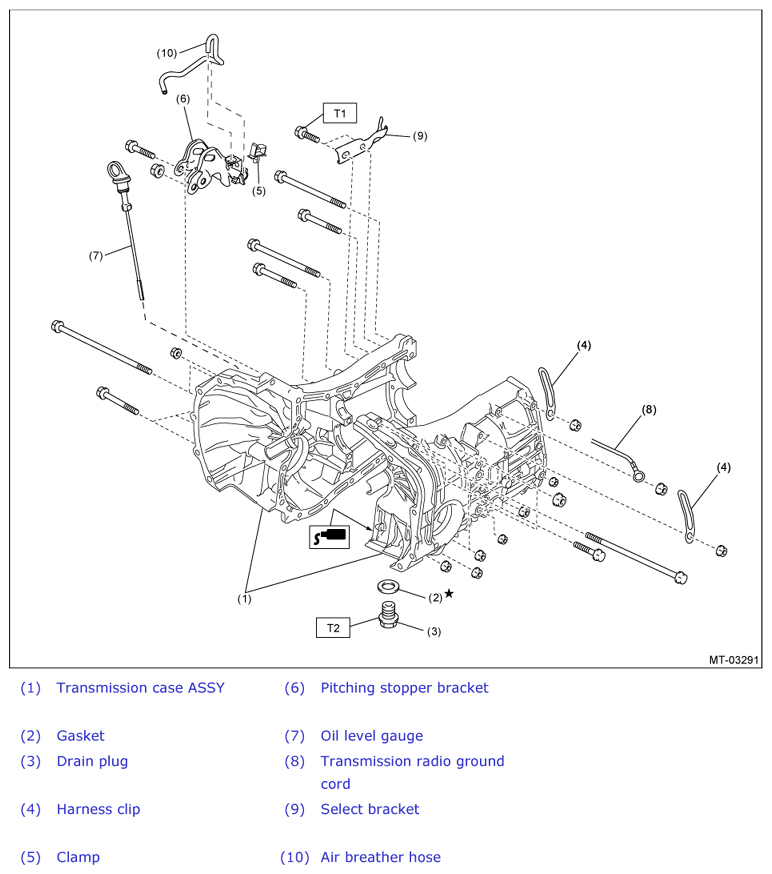

Fig 1: Transmission Case Components

G12516064

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 44 (4.5, 32.5) (aluminum gasket, silver)

TRANSMISSION CASE TIGHTENING TORQUE SPECIFICATION

Courtesy of SUBARU OF AMERICA, INC.	Bolt No.	Bolt size mm	Tightening torque: N.m (kgf-m, ft-lb)
	(5) - (15)	8	25 (2.5, 18.4)
	(1) - (4) (16), (17)	10	40 (4.1, 29.5)
