Main Shaft Assembly

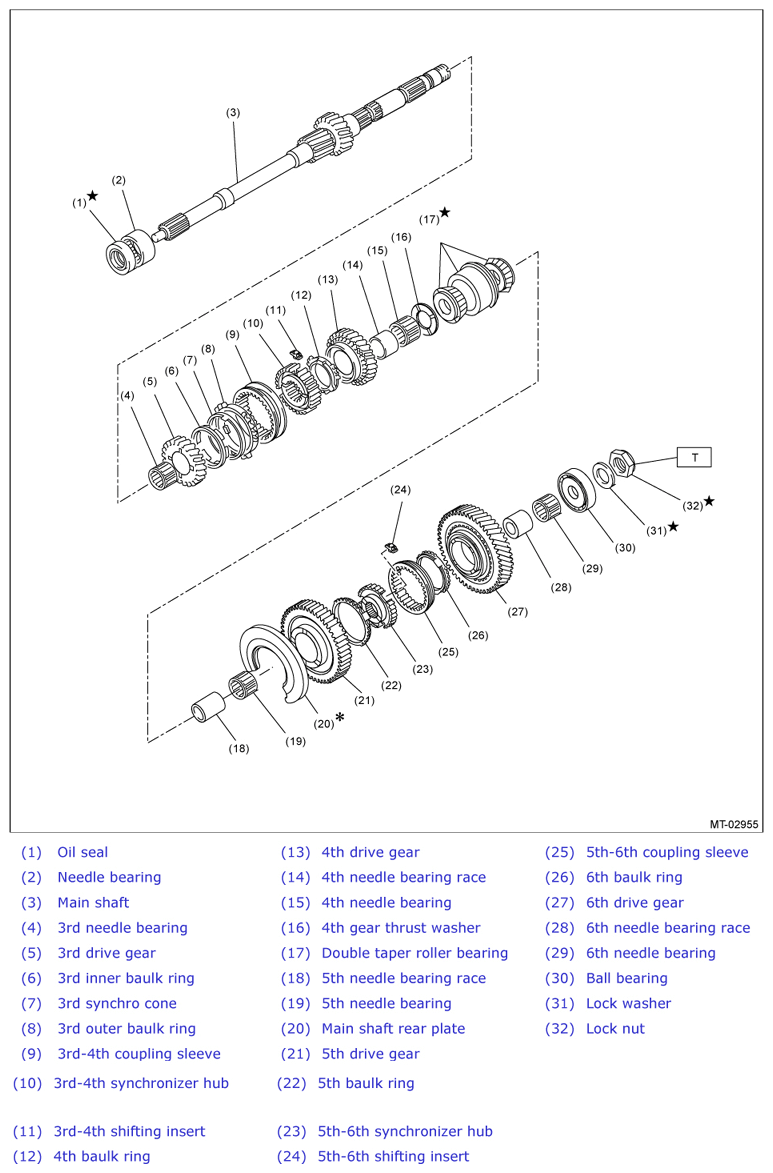

Fig 1: Exploded View Of Main Shaft Assembly
G12516067Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 160 (16.3, 118.0)
