General Description
>>
Component With Torque Specifications
>>
Front Differential
Front Differential

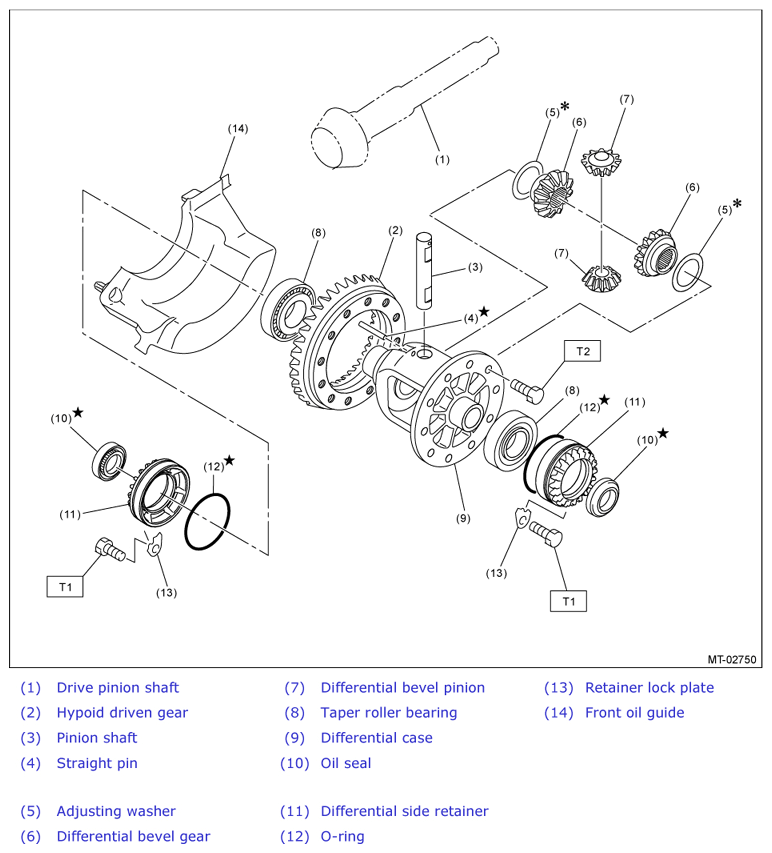

Fig 1: Front Differential Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 62 (6.3, 45.7)
Courtesy of SUBARU OF AMERICA, INC.
