Rear Sub Frame: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lift up the vehicle, and then remove the rear wheels.
  3. Remove the propeller shaft assembly. Ref. to DRIVE SHAFT SYSTEM>Propeller Shaft>REMOVAL .

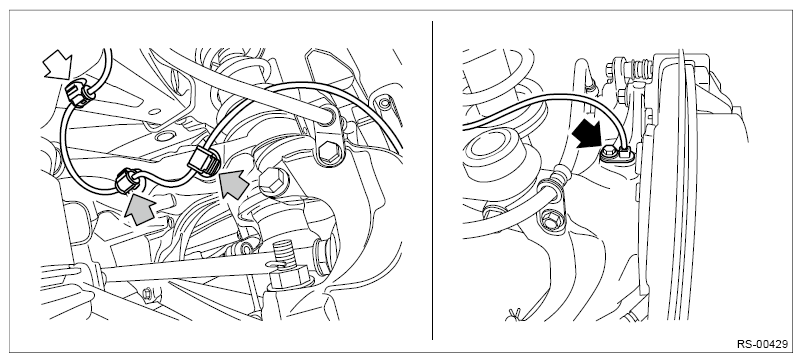

  4. Remove the rear ABS wheel speed sensor from the housing assembly - rear axle.
    1. Remove the bolts, and remove the rear ABS wheel speed sensor.
    2. Remove the rear ABS wheel speed sensor harness from the upper arm assembly.
      CAUTION:
      • Be careful not to damage the sensor.
      • Do not apply excessive force to the sensor harness.
      G12513105Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the caliper body assembly from the housing assembly - rear axle.

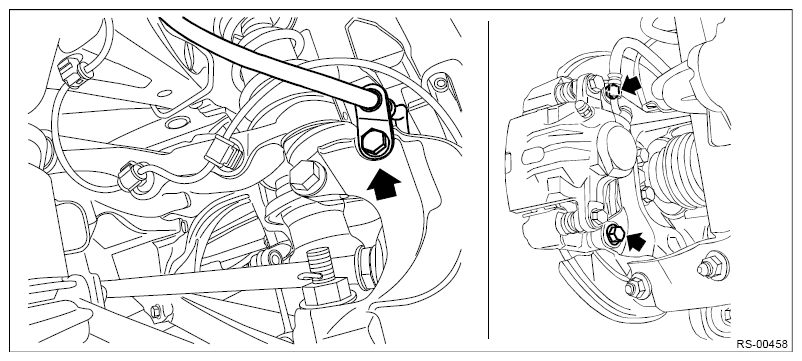

    1. Remove the bolts and then remove the brake hose bracket and caliper body assembly.
      G12513106Courtesy of SUBARU OF AMERICA, INC.

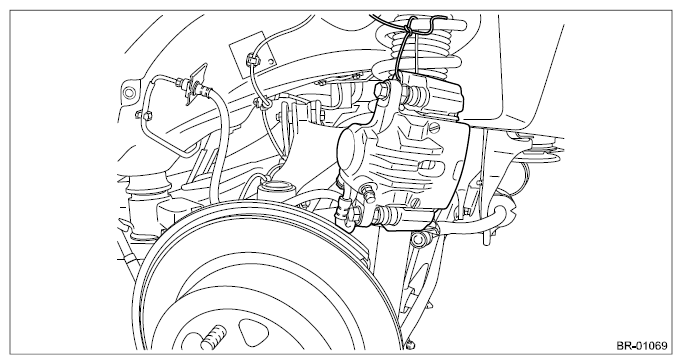

    2. Prepare wiring harnesses etc. to be discarded, and suspend the caliper body assembly from the shock absorber assembly with the harnesses.
    G12513107Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the cable assembly - parking brake from the lever section of parking brake shoe. Ref. to PARKING BRAKE>Parking Brake Assembly (Rear Disc Brake)>REMOVAL .

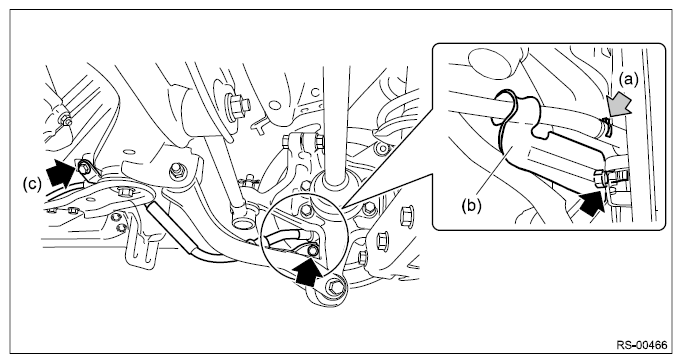

  7. Remove the rear parking brake cable from the parking brake assembly.
    1. Remove the clamp B - hand brake cable (a) from the rear brake.
    2. Remove the cable clamp (b) from the back plate - rear brake.
    3. Remove the cable clamp (c) and pull out the cable assembly - parking brake.
    G12513108Courtesy of SUBARU OF AMERICA, INC.

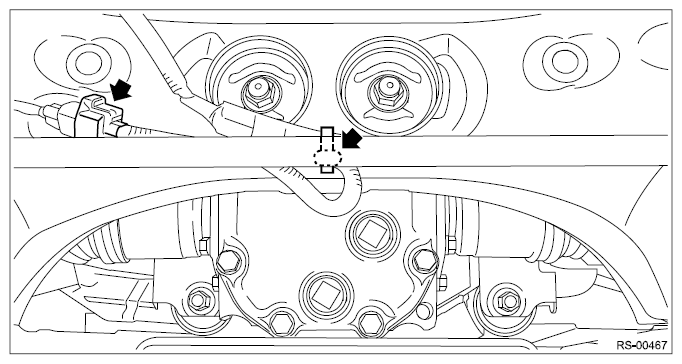

  8. Remove the sub rear harness clamp and connector.
    G12513109Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the sensor assembly - headlight beam leveler. (Model with auto headlight beam leveler, left side only) Ref. to LIGHTING SYSTEM>Rear Height Sensor>REMOVAL .

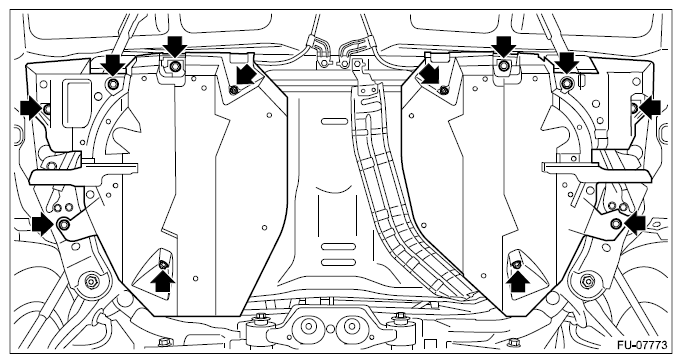

  10. Remove the bolt and nuts and remove the fuel tank protector.
    G12513110Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the rear sub frame assembly.

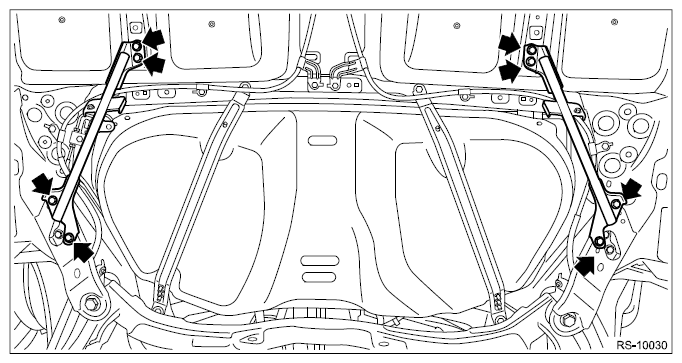

    1. Remove the bolts, and remove the stay - rear frame COMPL.
      G12513111Courtesy of SUBARU OF AMERICA, INC.

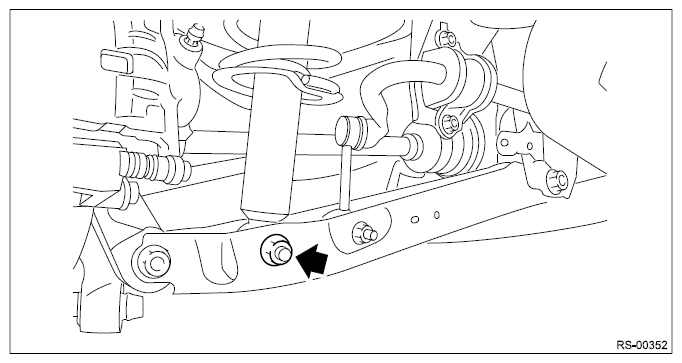

    2. Remove the bolts from the lower side of rear shock absorber assembly.
      G12513112Courtesy of SUBARU OF AMERICA, INC.
    3. Support the rear sub frame assembly using a transmission jack.
    4. Remove the bolt, and remove the left and right sub frame supports.

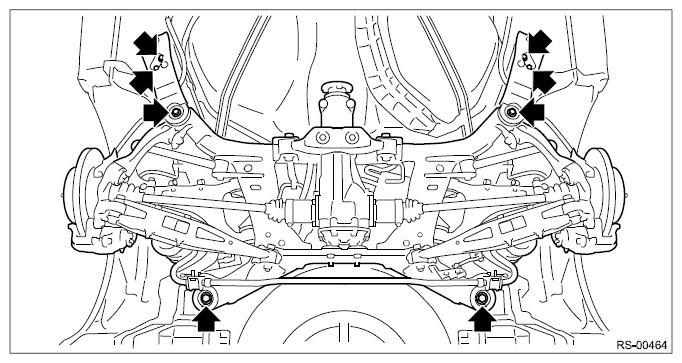

    5. Remove the bolts, then remove the rear sub frame assembly.
    • Non-turbo model
      G12513113Courtesy of SUBARU OF AMERICA, INC.

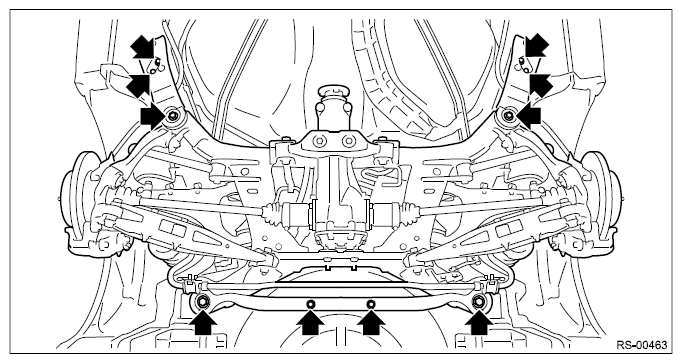

    • Turbo model
      G12513114Courtesy of SUBARU OF AMERICA, INC.
  12. As necessary, remove each part from the rear sub frame assembly.
