Universal Joint: Inspection

Check for wear, damage or any other faults.

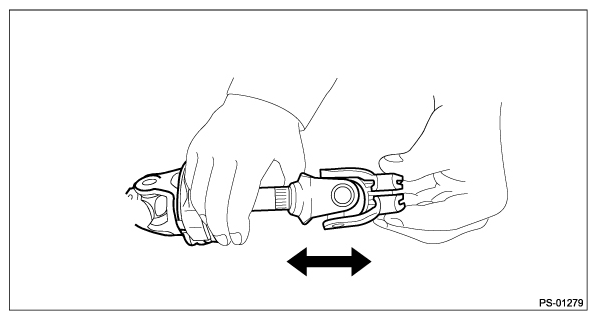

1. Check the universal joint assembly - steering for excessive looseness.

   Service limit:

   Play of the universal joint assembly - steering: 0 mm (0 in)

   Courtesy of SUBARU OF AMERICA, INC.

2. Measure the swing torque of the universal joint assembly - steering.
   1. Place the universal joint assembly - steering between wooden blocks and fix it on a vise.

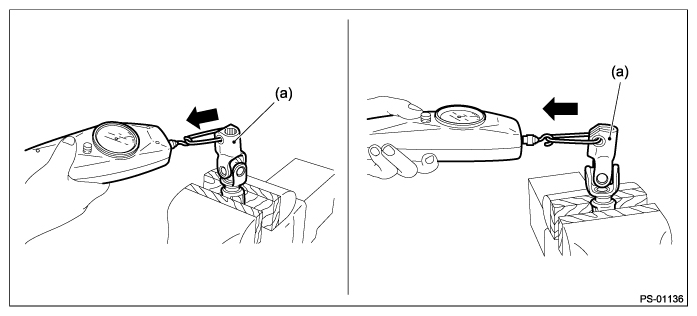

   2. With the yoke (a) of gearbox side facing up, measure the swing torque in two directions.

      Courtesy of SUBARU OF AMERICA, INC.

      Service limit:

      Maximum load: 6.8 N (0.68 kgf, 1.54 lbf) or less

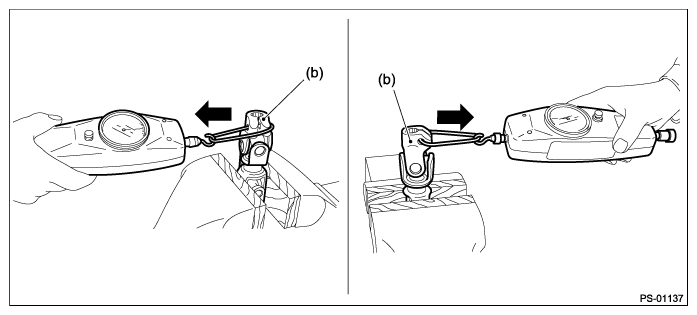

   3. With the yoke (b) of the column assembly - steering side facing up, measure the swing torque in two directions.

      Courtesy of SUBARU OF AMERICA, INC.

      Service limit:

      Maximum load: 8.1 N (0.81 kgf, 1.84 lbf) or less

   4. Replace as necessary, if it is found defective.
