Steering Wheel: Disassembly

  1. Remove the screw, disconnect the connector and remove the paddle shift switch. (Model with paddle shift)
    G12508108Courtesy of SUBARU OF AMERICA, INC.
  2. Release the claws and remove the screws, then detach the cover - spoke.

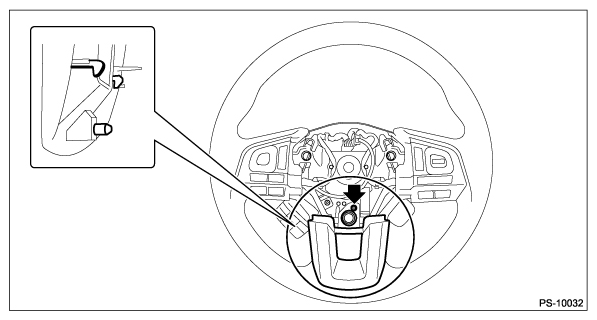

    G12508109Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the cover - steering wheel LWR.
    CAUTION: Carefully remove the cover - steering wheel LWR and the steering wheel. Do not pull with excessive force. Otherwise, heat wire between cover - steering wheel LWR and steering wheel may be damaged. (Model with steering heater)
    1. Remove the connectors and screws. (Model with MID switch and model with steering heater switch)
    2. Release the claws and harness clips, detach the cover - steering wheel LWR.

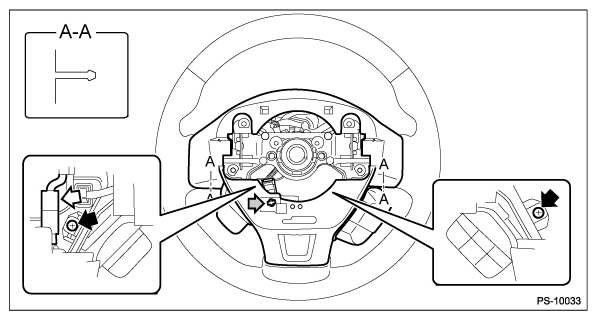

      G12508110Courtesy of SUBARU OF AMERICA, INC.
      NOTE: For model with steering heater, disconnect the screw and connector with the cover - steering wheel LWR removed from steering wheel, and remove the steering heater unit.
      Also, remove the heater elements RH and LH secured with double-sided tape from the cover - steering wheel LWR.
      G12508111Courtesy of SUBARU OF AMERICA, INC.
  4. Release the claws and remove the screws, then detach the satellite switch.

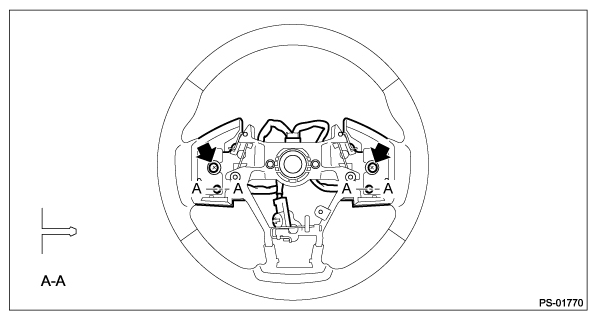

    G12508112Courtesy of SUBARU OF AMERICA, INC.
  5. Release the connector and claws, and remove the steering heater switch and steering heater unit. (Model with steering heater)

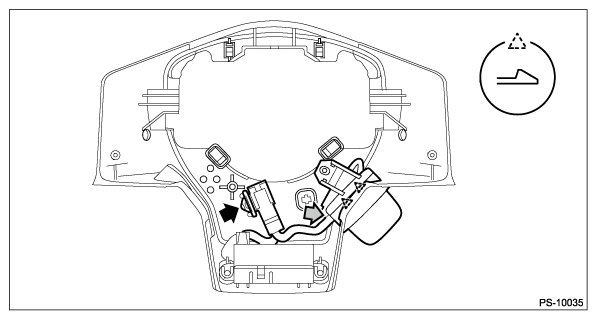

    G12508113Courtesy of SUBARU OF AMERICA, INC.
  6. Release the claws, and then remove the MID switch. (Model with MID switch)
    G12508114Courtesy of SUBARU OF AMERICA, INC.
