Rear Gate Lock/Unlock And Open/Close Operations

  1. Open and close the rear gate several times for smooth movement.
  2. Operate the rear gate emergency release lever to check that the rear gate can be locked and unlocked properly.

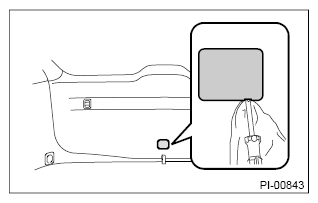

    1. Remove the cover inside the rear gate.
      G12505234Courtesy of SUBARU OF AMERICA, INC.
    2. Operate the lever using a tool such as a screwdriver to check that the unlock operation can be performed normally.

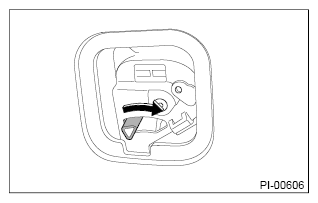

      • Except for model with power rear gate
        G12505235Courtesy of SUBARU OF AMERICA, INC.

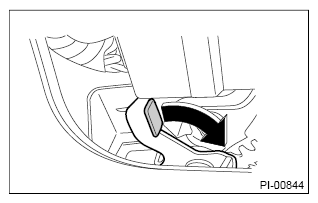

      • Model with power rear gate
        G12505236Courtesy of SUBARU OF AMERICA, INC.
