Identification Number & Label Locations

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

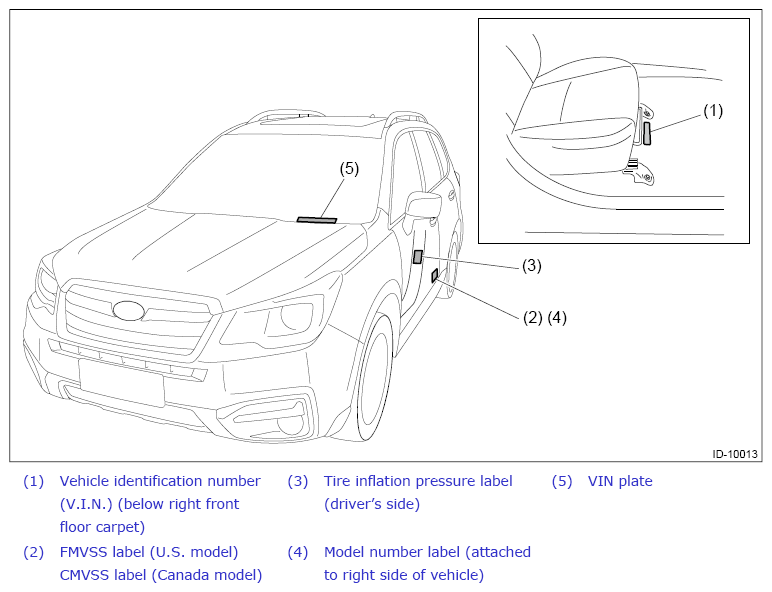

• Positioning of the plate label for identification

  Courtesy of SUBARU OF AMERICA, INC.

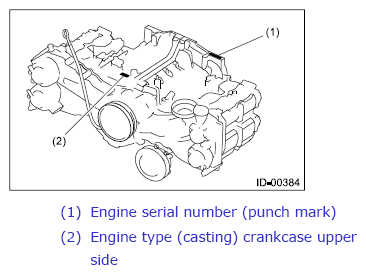

  Engine

  Courtesy of SUBARU OF AMERICA, INC.

• Automatic transmission

  CVT

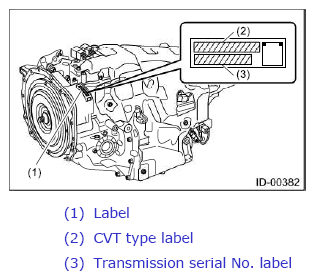

  • TR690

    Courtesy of SUBARU OF AMERICA, INC.

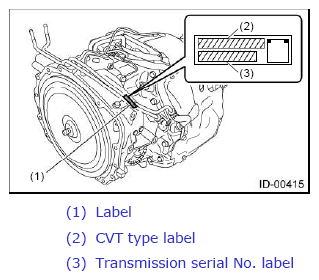

  • TR580

    Courtesy of SUBARU OF AMERICA, INC.

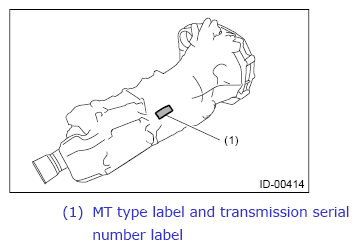

  • Manual transmission

    Courtesy of SUBARU OF AMERICA, INC.

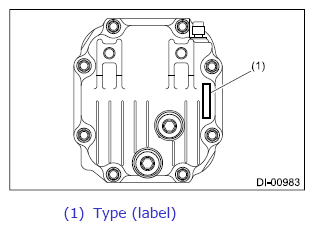

  • Rear differential

    T-type

    Courtesy of SUBARU OF AMERICA, INC.

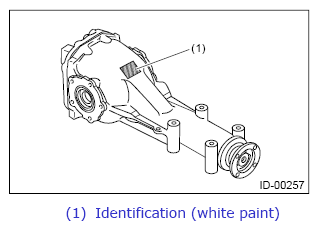

  • VA1-type

    Courtesy of SUBARU OF AMERICA, INC.

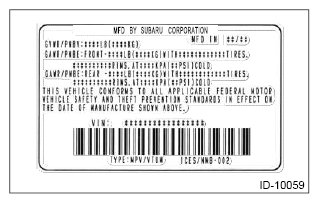

  • FMVSS label (for U4 and U5)

    Courtesy of SUBARU OF AMERICA, INC.

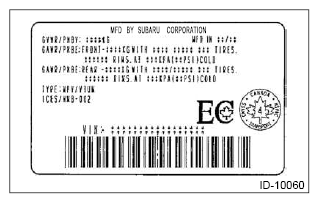

  • CMVSS label (for C0 and C5)

    Courtesy of SUBARU OF AMERICA, INC.

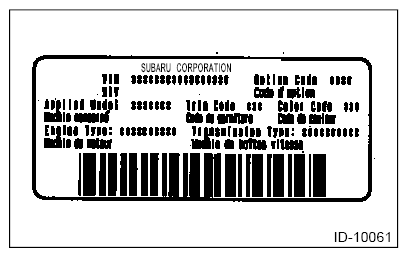

  • Model number label

    Courtesy of SUBARU OF AMERICA, INC.
