Section 17 (Engine Cooling System (H4DOTC)): Radiator: Installation
WARNING: This page is about a different variant/trim than selected.
- Attach the radiator lower cushion to the radiator lower bracket.

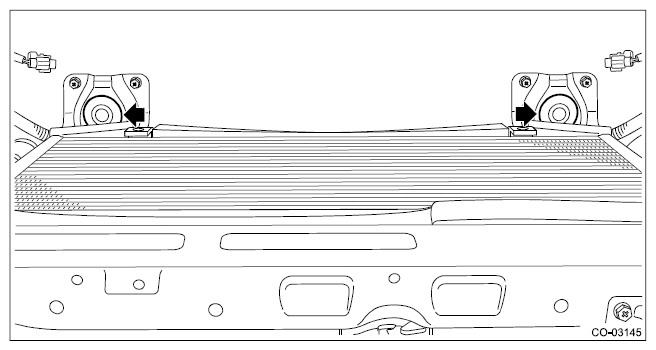

- Install the radiator to vehicle.NOTE: Make pins on the lower side of radiator be fitted into the radiator lower cushions.

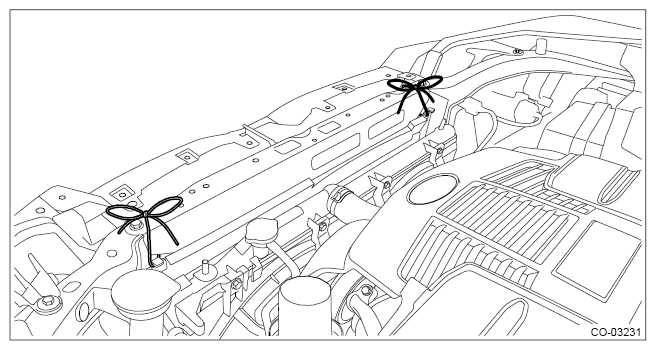

- Remove the ropes or other means used to secure the condenser to the vehicle.
- Install the bolts at the top of the condenser.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5. ft-lb)

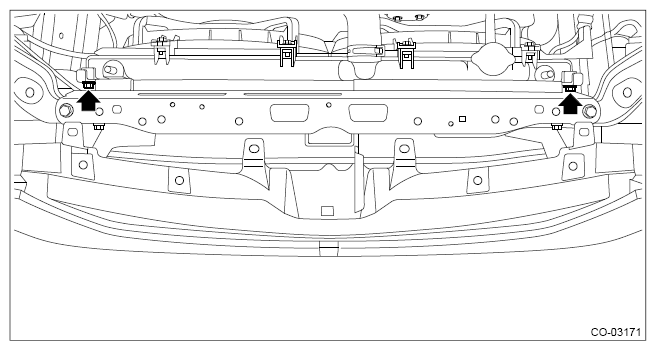

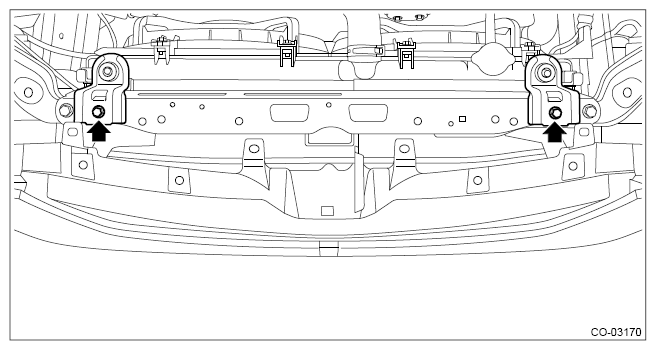

- Install the radiator upper brackets.
Tightening torque:
12 N.m (1.2 kgf-m, 8.9 ft-lb)

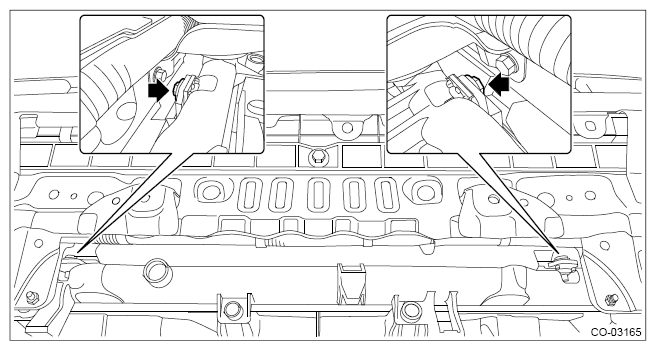

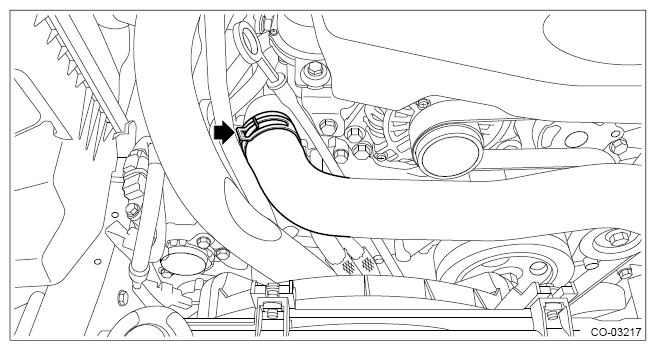

- Connect the radiator inlet hose to the water pipe assembly.

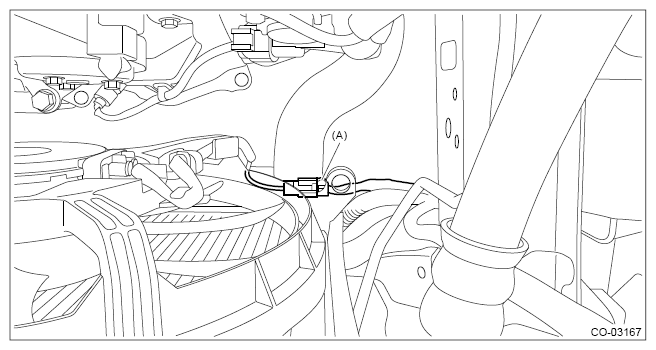

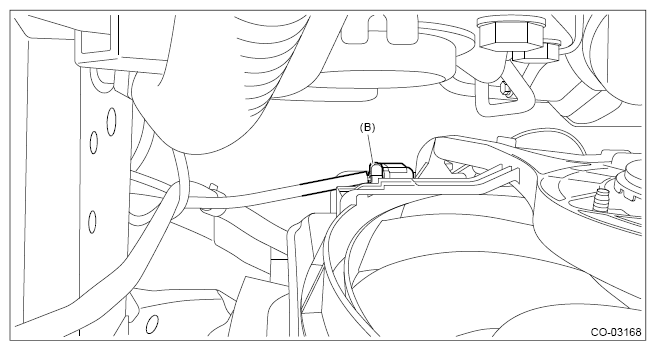

- Connect the connector (A) to the main fan motor and the connector (B) to the sub fan motor.
- Lift up the vehicle.

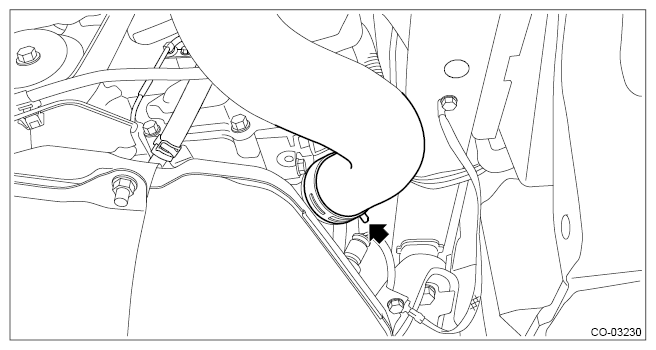

- Connect the radiator outlet hose to thermostat cover.
- Temporarily tighten the bolts a the bottom of the condenser.
- Install the under cover. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>INSTALLATION .
- Lower the vehicle.

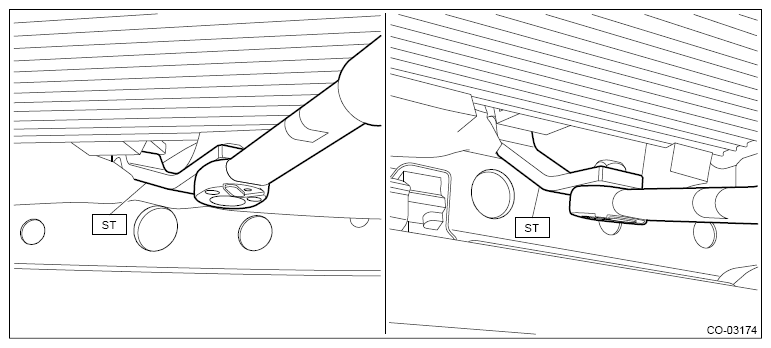

- Tighten the bolts at the bottom of the condenser using the ST.
ST 73099SG000
SPECIAL TOOL CONDENSER
Tightening torque:

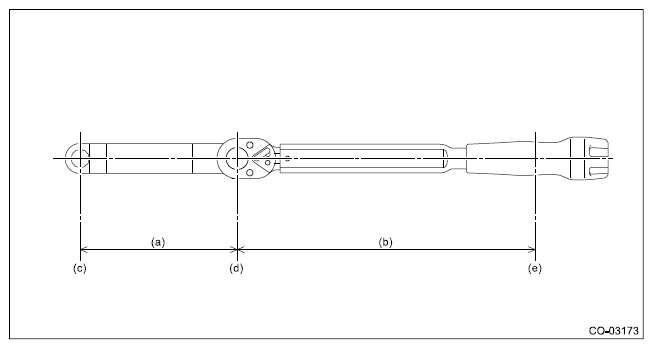

Calculation formula T = L/(100 mm (3.94 in) +L) x 7. N.m (0.8 kgf-m, 5. ft-lb) T: Tightening torque

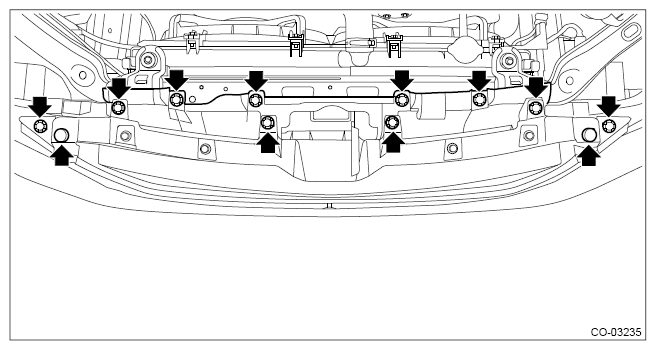

L: Effective length of torque wrenchNOTE: If the effective length of the torque wrench used is unknown, consult the manufacturer of the torque wrench. - Install the clips to the grille bracket and front bumper and install the grille bracket.
- Install the reservoir tank. Ref. to COOLING (H4DOTC)>Reservoir Tank>INSTALLATION .
- Install the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>INSTALLATION .
- Connect the battery ground terminal. Ref. to NOTE>NOTE>BATTERY .
- Fill engine coolant. Ref. to COOLING (H4DOTC)>Engine Coolant>REPLACEMENT>FILLING OF ENGINE COOLANT .
