Timing Chain LH

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Be careful that the foreign matter is not into or onto the assembled component during installation.
  • Apply engine oil to all component parts of the timing chain.

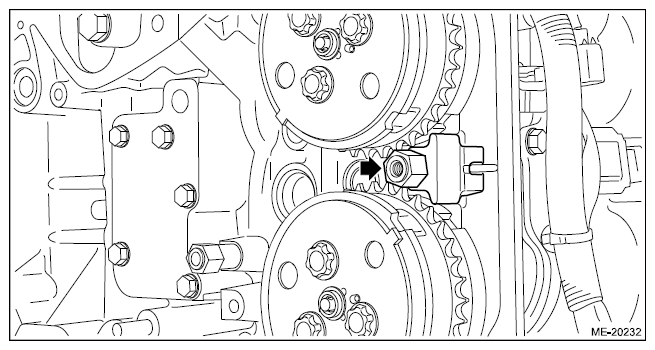

  1. Install the chain guide LH to the front camshaft cap LH.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    G12512534Courtesy of SUBARU OF AMERICA, INC.
  2. Prepare to attach the chain tensioner LH.

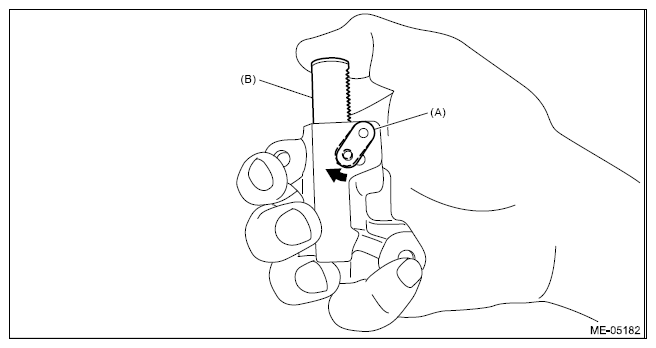

    1. Move the link plate (A) in the direction of arrow to press in the plunger (B).
      G12512535Courtesy of SUBARU OF AMERICA, INC.

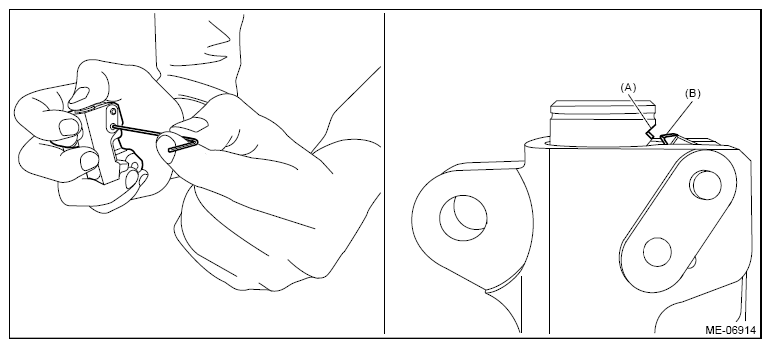

    2. In order to secure the plunger, insert a stopper pin (clips, etc.) with a diameter of 1.2 mm (0.0472 in) or less or a hex wrench with a diameter of 1.2 mm into the stopper pin hole.
      NOTE: If the stopper pin hole on the link plate and the stopper pin hole on the chain tensioner are not aligned, check that the first notch of plunger rack (A) is engaged with the stopper tooth (B). If not engaged, retract the plunger a little so that the first notch of plunger rack (A) is engaged with the stopper tooth (B).
      G12512536Courtesy of SUBARU OF AMERICA, INC.
  3. Check that the crank sprocket is located at the position shown in the figure. If not aligned, using ST turn the crankshaft to align the crank sprocket alignment mark to the position shown in the figure.
    NOTE: This procedure is required to prevent the valve and piston contacting with each other in the next step.

    ST 18252AA000 CRANKSHAFT SOCKET

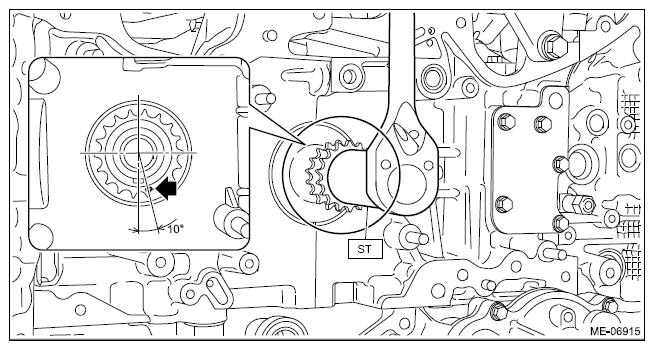

    G12512537Courtesy of SUBARU OF AMERICA, INC.

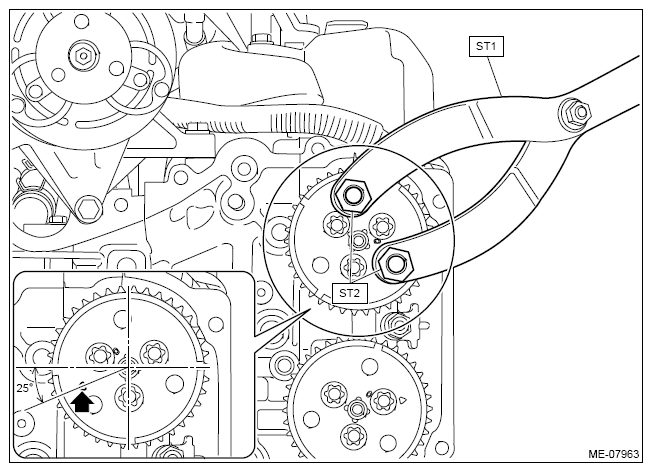

  4. Using ST and by turning the intake cam sprocket LH, align the alignment marks to the positions as shown in the figure.
    CAUTION:
    • When the intake valve and exhaust valve lift at the same time, the valve heads contact each other and valve stem may bend. Do not turn the exhaust camshaft LH.
    • Perform the operation carefully since the ST comes off easily.

    ST1 18355AA000 PULLEY WRENCH

    ST2 18334AA020 PULLEY WRENCH PIN SET

    G12512538Courtesy of SUBARU OF AMERICA, INC.
  5. Using ST and by turning the crankshaft approximately 130° counterclockwise, align the alignment marks of crankshaft key to the positions as shown in the figure.
    CAUTION: Never turn clockwise because the valve and piston may contact. Clockwise turn is allowed only when adjusting the key position precisely, after turning the crankshaft counterclockwise to bring the key near the position as shown in the figure.

    ST 18252AA000 CRANKSHAFT SOCKET

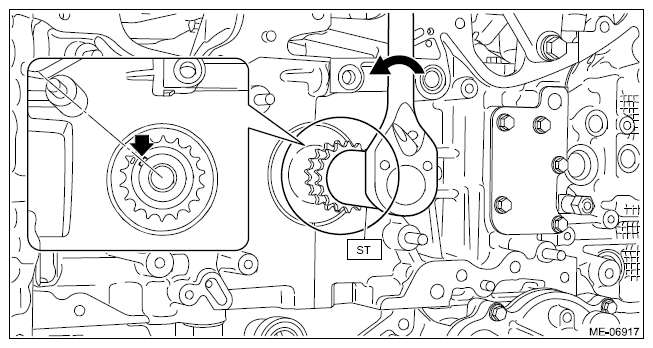

    G12512539Courtesy of SUBARU OF AMERICA, INC.

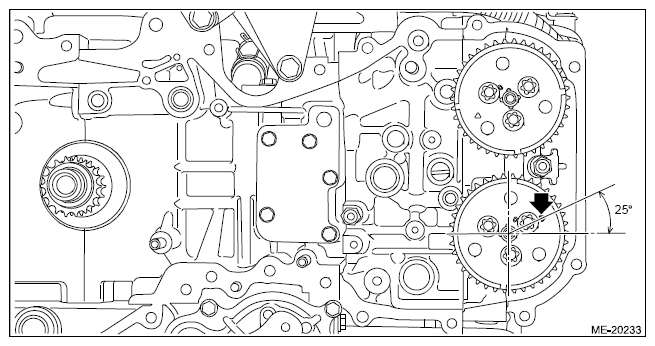

  6. Align the alignment mark of exhaust cam sprocket LH to the position shown in the figure.
    CAUTION: To prevent valve damage, turn the exhaust cam sprocket LH only within the range of zero-lift (in range where it can be turned lightly by hand).
    G12512540Courtesy of SUBARU OF AMERICA, INC.
  7. Install the timing chain LH and the timing chain guide LH.
    1. Match the timing chain mark (blue) to the alignment mark of the crank sprocket.
    2. Match the timing chain mark (pink) to the timing mark position of the intake cam sprocket LH.
    3. Match the timing chain mark (pink) to the timing mark position of the exhaust cam sprocket LH.
    4. Install timing chain guide LH.

      Tightening torque:

      6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

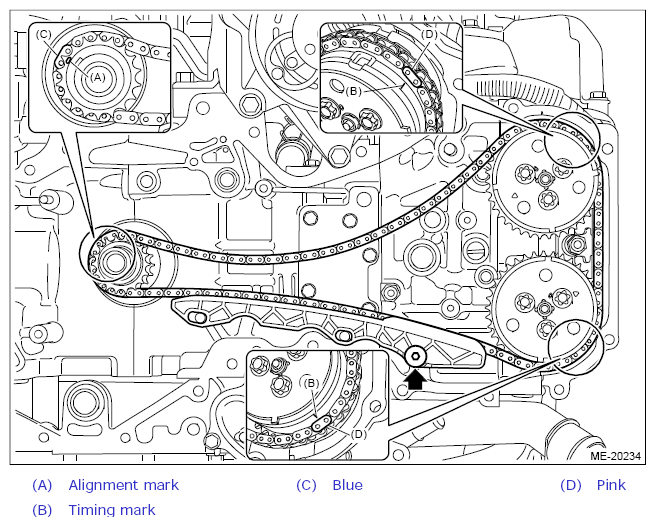

      G12512541Courtesy of SUBARU OF AMERICA, INC.
  8. Install O-rings to the cylinder block LH.
    NOTE: Use new O-rings.

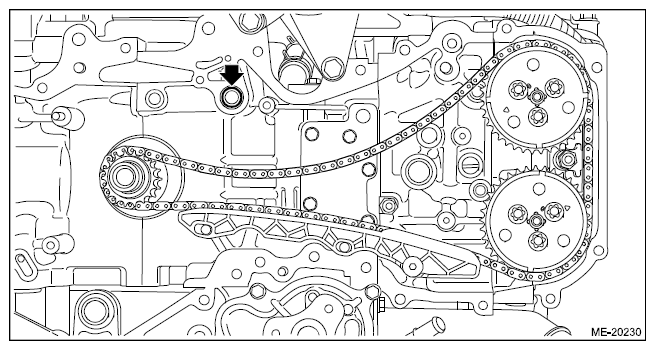

    G12512542Courtesy of SUBARU OF AMERICA, INC.

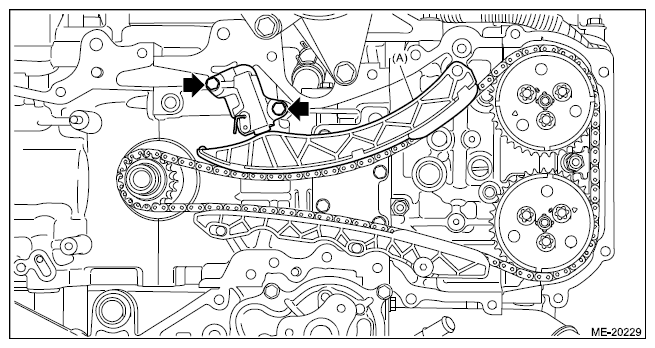

  9. Install the chain tensioner lever LH (A) and chain tensioner LH.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    G12512543Courtesy of SUBARU OF AMERICA, INC.

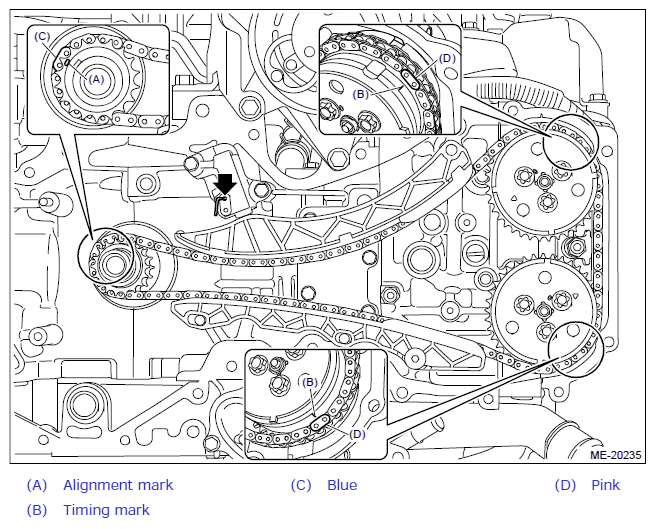

  10. Pull out the stopper pin from the chain tensioner LH.
    CAUTION: Confirm the following before pulling out the stopper pin.
    • Matching of the timing chain mark (blue) to the alignment mark of the crank sprocket.
    • Matching of the timing chain mark (pink) to the timing mark position of the intake cam sprocket LH.
    • Matching of the timing chain mark (pink) to the timing mark position of the exhaust cam sprocket LH.

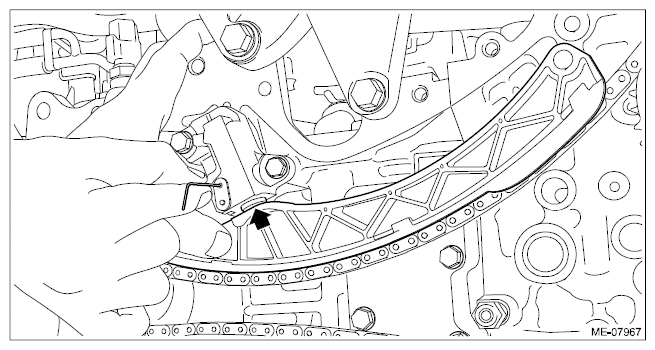

    NOTE: If the stopper pin cannot be removed, lift the chain tension lever LH to remove as shown in the figure.
    G12512544Courtesy of SUBARU OF AMERICA, INC.
    G12512545Courtesy of SUBARU OF AMERICA, INC.
  11. Using the ST, turn the crankshaft clockwise, and make sure that there are no abnormal conditions.
    CAUTION: Always make sure to perform this confirmation.

    ST 18252AA000 CRANKSHAFT SOCKET

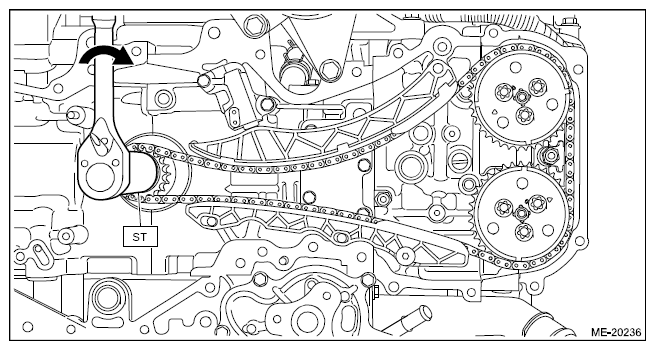

    G12512546Courtesy of SUBARU OF AMERICA, INC.
  12. Using ST and by turning the crankshaft, align the alignment marks of crank sprocket, intake cam sprocket LH and exhaust cam sprocket LH to the positions as shown in the figure.
    NOTE: If the alignment marks are aligned to the positions as shown in the figure, the crankshaft key is located at six o'clock position.

    ST 18252AA000 CRANKSHAFT SOCKET

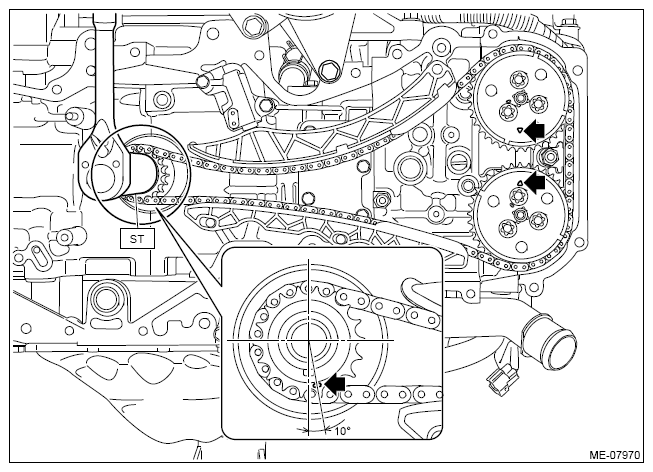

    G12512547Courtesy of SUBARU OF AMERICA, INC.
  13. Install the timing chain RH. Ref. to MECHANICAL (H4DOTC)>Timing Chain Assembly>INSTALLATION>TIMING CHAIN RH .
