Starting System & Charging System (H4DO): Starter: Assembly

Apply grease to the shaft sliding surfaces of the internal gear assembly.
Grease:

Multemp #6129 or equivalent

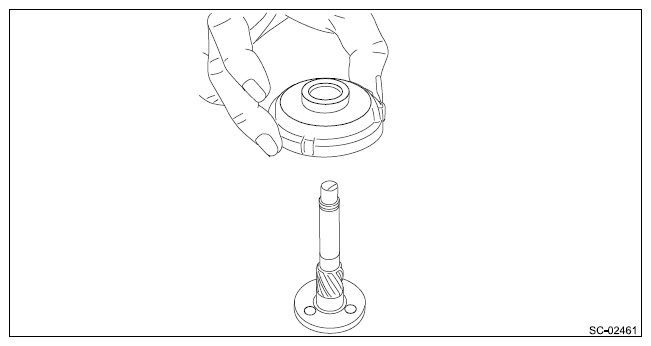

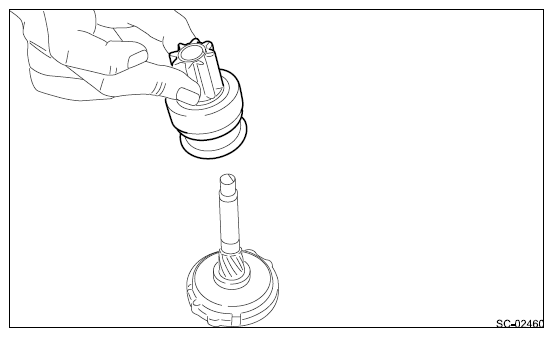

Assemble the shaft to the internal gear assembly.

Courtesy of SUBARU OF AMERICA, INC.

Assemble the overrunning clutch as follows:

Apply grease to the spline portion of the shaft.
Grease:

Multemp #6129 or equivalent

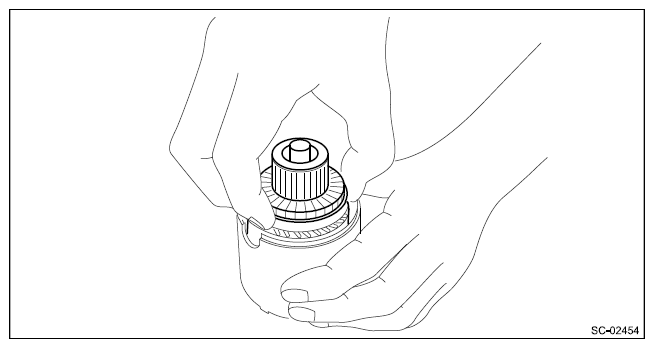

Install the overrunning clutch to shaft.

Courtesy of SUBARU OF AMERICA, INC.

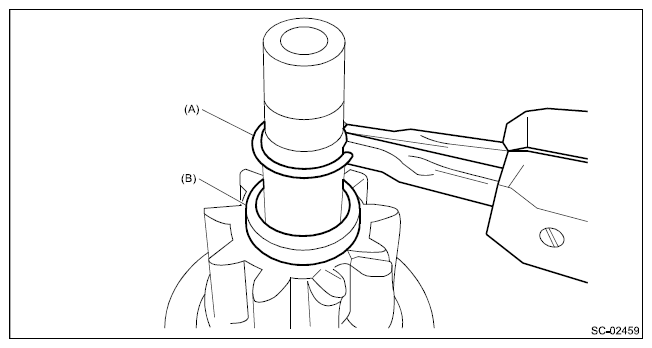

Pass stopper (B) through the shaft assembly, and attach snap ring (A).

NOTE: Use new stoppers and snap rings.

Courtesy of SUBARU OF AMERICA, INC.

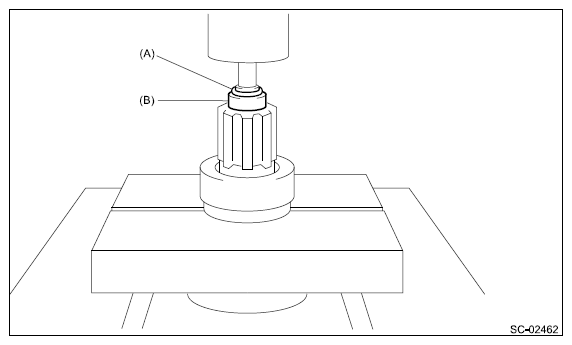

Using a press, pressure fit stopper (B) into snap ring (A).

Courtesy of SUBARU OF AMERICA, INC.

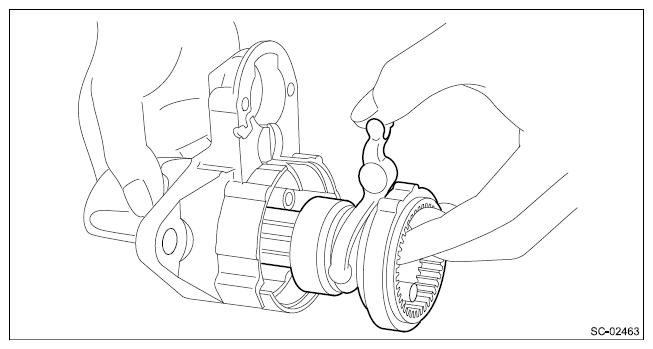

Assemble the overrunning clutch, internal gear assembly, shaft and shift lever as a single unit into the starter housing assembly.
NOTE: Apply grease to the moving parts of the shift lever.

Grease:

Multemp #6129 or equivalent

Courtesy of SUBARU OF AMERICA, INC.

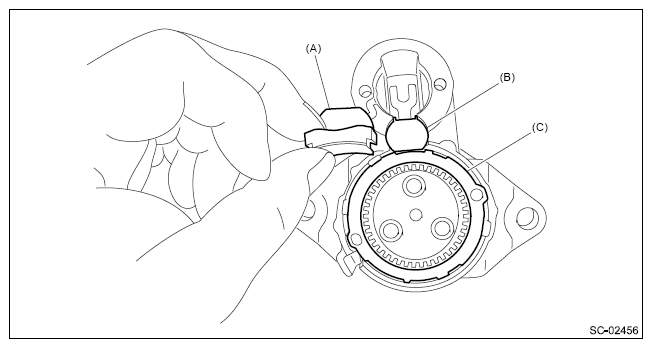

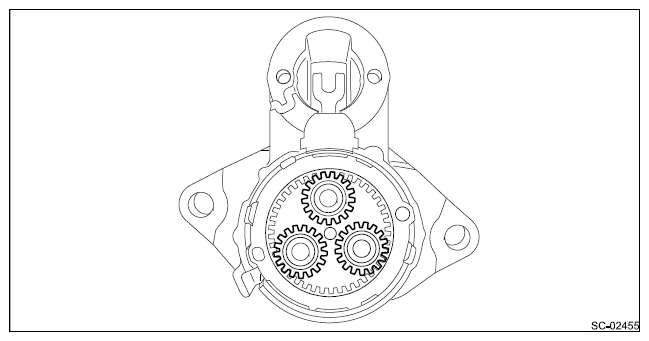

Apply grease to the inside of the internal gear assembly and pinion gear, and attach the pinion gear to the internal gear assembly.
NOTE:
- Apply grease evenly to the contact surfaces of each gear.
- Be careful that no debris becomes attached.
Grease:

Molykote® AG650 or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Install seal rubber (A), plate (B), and seal rubber (C).

Courtesy of SUBARU OF AMERICA, INC.
Assemble the armature assembly to the yoke assembly.

Courtesy of SUBARU OF AMERICA, INC.

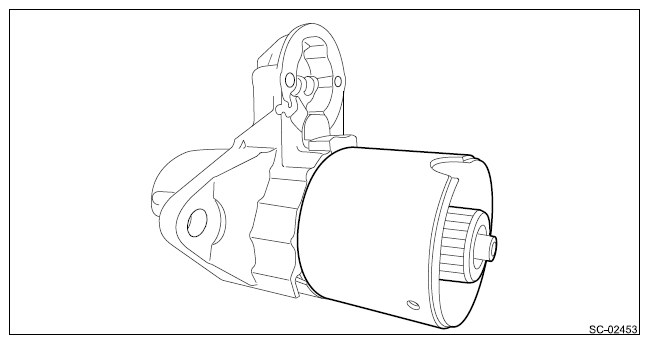

Attach the armature assembly and yoke assembly to the starter housing assembly together as a single unit.

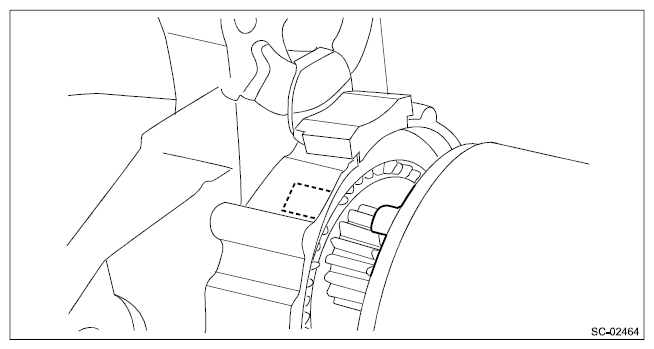

NOTE: As shown in the figure, match the protrusion of the yoke assembly to the cut out of the starter housing assembly.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

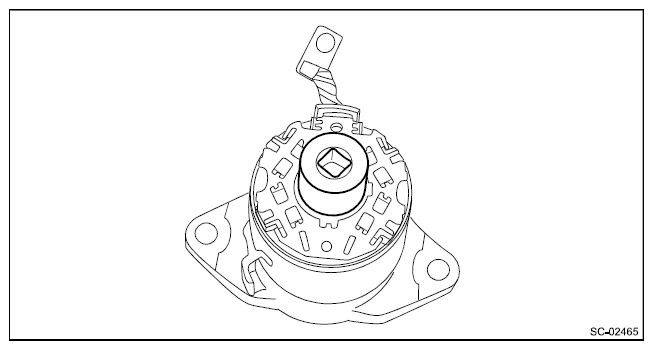

Use an appropriate tool (such as correctly sized socket wrenches) and attach the brush holder assembly to the armature assembly.
NOTE: Be careful not to damage the brushes.

Courtesy of SUBARU OF AMERICA, INC.

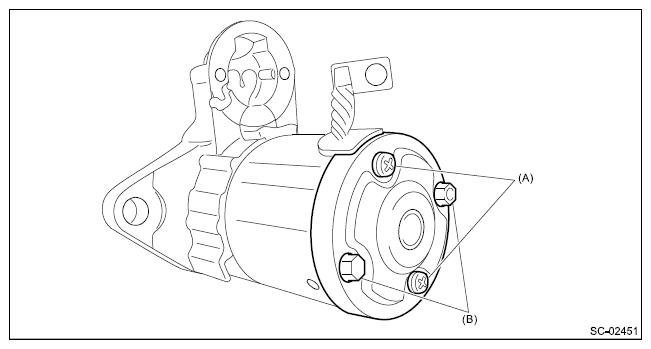

Secure starter cover assembly to the brush holder assembly with screws (A).
Tightening torque:

1.4 N.m (0.1 kgf-m, 1.0 ft-lb)
Tighten through bolts (B) on both sides.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

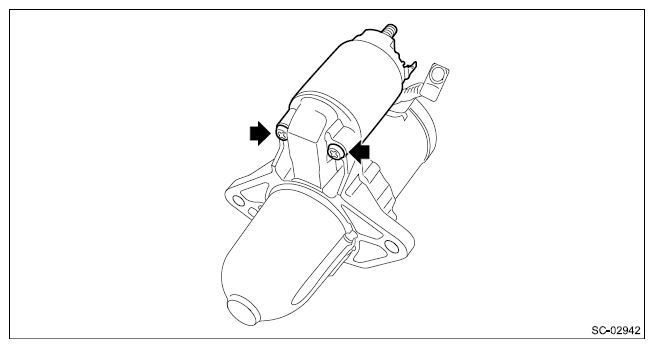

Attach the magnet switch assembly to the starter housing assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5. ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

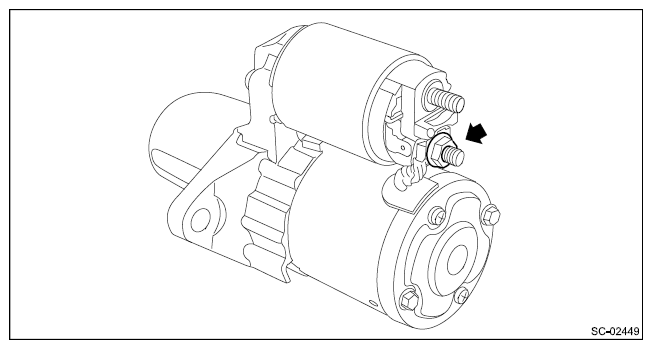

Connect the cable to terminal M of the magnet switch assembly.
Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
