Battery Current & Temperature Sensor: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .

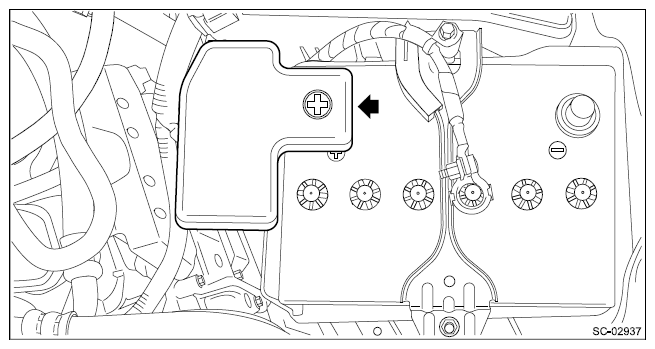

  2. Remove the battery terminal boot.
    G12508826Courtesy of SUBARU OF AMERICA, INC.

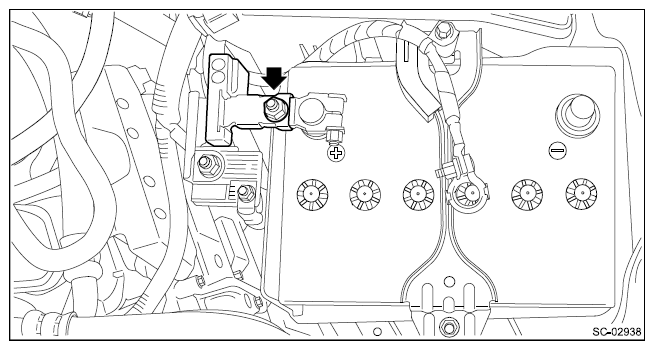

  3. Remove the nut which holds the battery current & temperature sensor.
    CAUTION:
    • Hold the terminal bracket with your hand when loosening the nut to avoid deforming the bracket.
    • While working, be sure to protect metal parts with cloth.
    G12508827Courtesy of SUBARU OF AMERICA, INC.

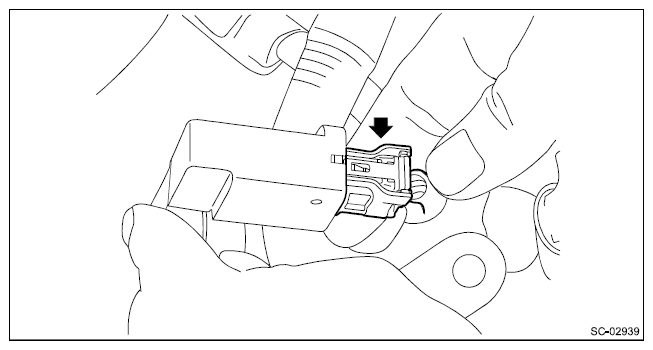

  4. Disconnect the connectors from the battery current & temperature sensor.
    G12508828Courtesy of SUBARU OF AMERICA, INC.
