Air Intake Boot: Removal

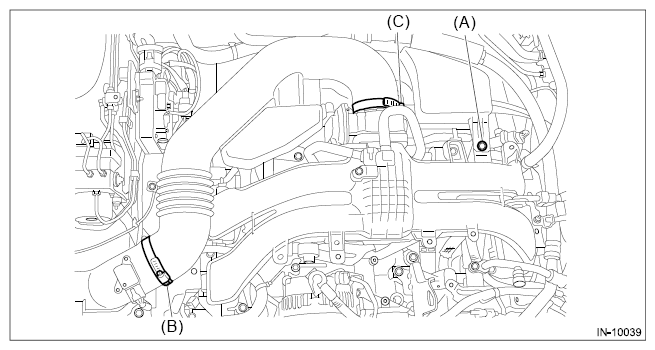

  1. Remove the clip (A) from the air intake boot.
  2. Loosen the clamp (B) securing the air cleaner case (rear) to the air intake boot.
  3. Loosen the clamp (C) which secures the throttle body to the air intake boot.
    G12505657Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the PCV hose and remove the air intake boot.
