Air Cleaner Element: Installation

Install in the reverse order of removal.

CAUTION: Be sure to use SUBARU genuine air cleaner element depending on the engine type when replacing the air cleaner elements. Using other air cleaner element may affect the engine performance.
NOTE:
  • Check that there is no dirt or dust within the air cleaner case. If any dirt or dust is found, clean it.

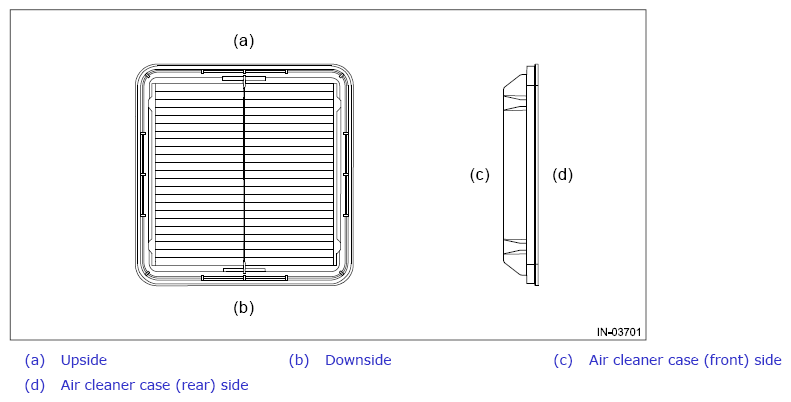

  • Install the air cleaner element as shown in the figure.
    G12505644Courtesy of SUBARU OF AMERICA, INC.

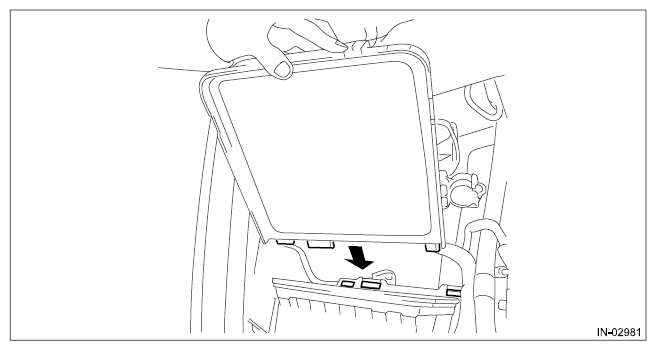

  • If the protrusion of the air cleaner case (rear) is removed when removing the air cleaner element, align the protrusion of the air cleaner case (rear) to the air cleaner case (front) to install the air cleaner case (rear).
    G12505645Courtesy of SUBARU OF AMERICA, INC.
