VDC OFF Switch: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .

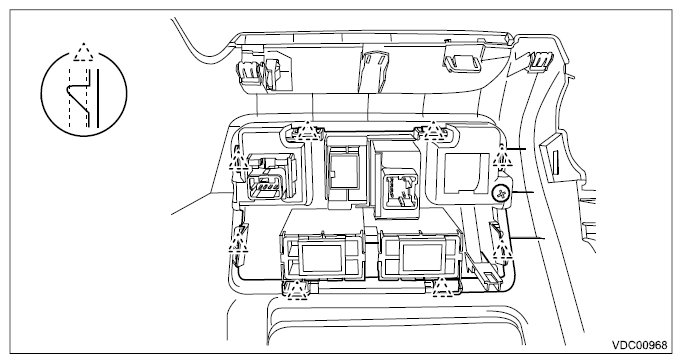

  3. Remove the screws and release the claws, then detach the cover. (Model without power rear gate)
    G12509336Courtesy of SUBARU OF AMERICA, INC.
  4. Release the claws and remove the VDC OFF switch.

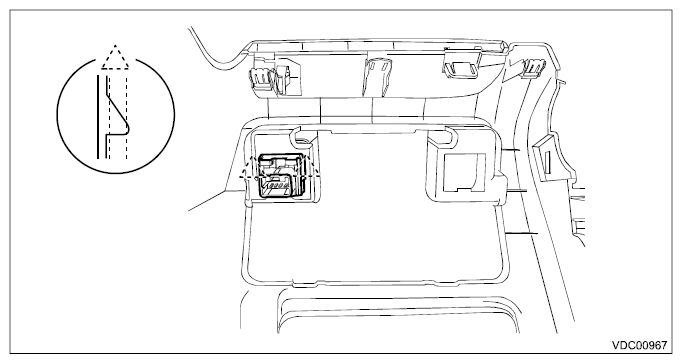

    • Model without power rear gate
      G12509337Courtesy of SUBARU OF AMERICA, INC.

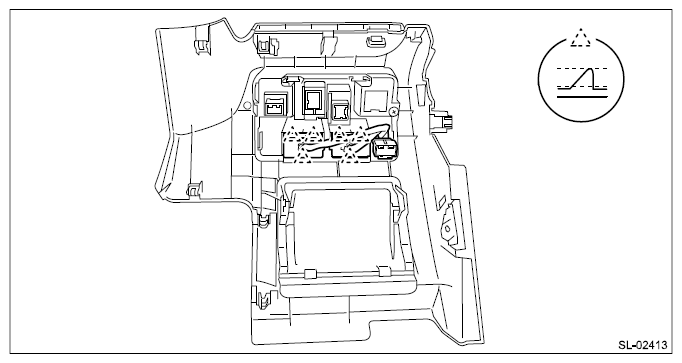

    • Model with power rear gate
      G12509338Courtesy of SUBARU OF AMERICA, INC.
