Component With Torque Specifications: Mirror

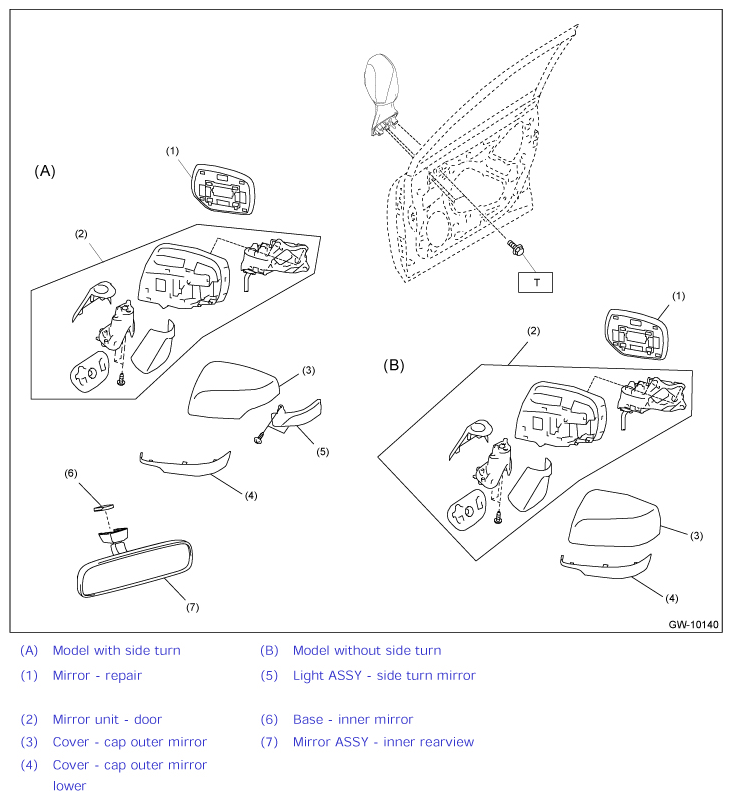

Fig 1: Mirror Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)

NOTE: Base - inner mirror cannot be removed from the glass - front window.
