Remote Control Back Rest Actuator

  1. Remove the rear seat backrest. Ref. to SEATS>Rear Seat>REMOVAL .

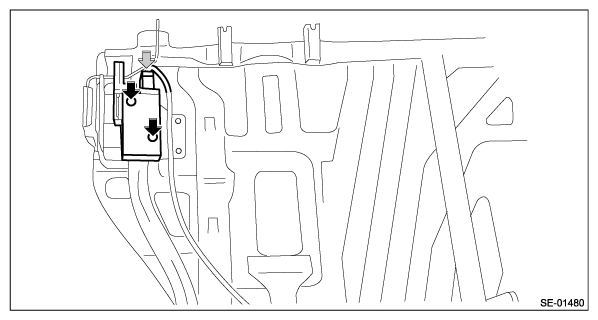

  2. Remove the remote control back rest actuator from the rear seat backrest.
    1. Disconnect the connector.
    2. Remove the screws to remove the remote control back rest actuator.
      G12515765Courtesy of SUBARU OF AMERICA, INC.
